Lexus IS250 · Service Manual BRAKE

REMOVAL

Removal / installation


1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)

  1. B123333
    Turn the shift lever knob counterclockwise and remove the shift lever knob sub-assembly.


2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)

  1. B123392
    Turn the shift lever knob counterclockwise and remove the shift lever knob sub-assembly.


3. REMOVE NO. 1 UPPER CONSOLE PANEL GARNISH (for Automatic Transmission)

  1. B123336
    Using a moulding remover, disengage the claw.

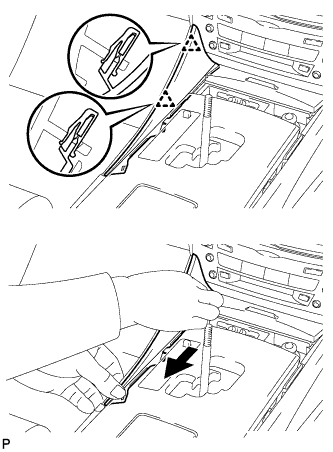

  1. B123337
    Pull the upper No. 1 console panel garnish in the direction indicated by the arrow to disengage the 2 clips and remove it.


4. REMOVE NO. 2 UPPER CONSOLE PANEL GARNISH (for Automatic Transmission)

  1. B123334
    Using a moulding remover, disengage the claw.

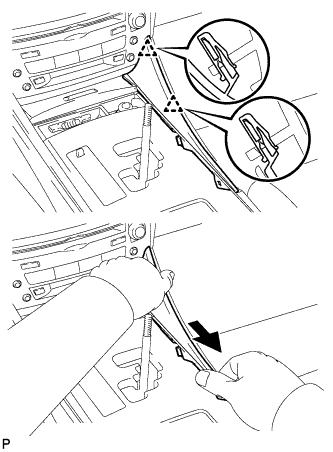

  1. B123335
    Pull the upper No. 2 console panel garnish in the direction indicated by the arrow to disengage the 2 clips and remove it.


5. REMOVE CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)

  1. B123338
    Disengage the 8 clips.

  1. Disconnect the connectors and remove the console panel sub-assembly.


6. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)

  1. B123396
    Open the snap.

  1. B123397
    Disengage the 7 claws and 2 clips, and then remove the rear console panel sub-assembly.


7. REMOVE FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)

  1. B123395
    Open the snap.

  1. B123399
    Pull the front console panel sub-assembly in the direction indicated by the arrow to disengage the 6 clips and remove it.


8. REMOVE FRONT ASH RECEPTACLE SUB-ASSEMBLY

  1. B116698
    Remove the 2 screws <F>.

  1. B116699
    Pull the front ash receptacle sub-assembly in the direction indicated by the arrow to disconnect the connectors and remove it.


9. REMOVE CONSOLE BOX REGISTER ASSEMBLY

  1. B123340
    Remove the rear ash receptacle assembly.

  1. Disengage the 2 claws and 4 clips, and then remove the console box register assembly.


10. REMOVE CONSOLE BOX

  1. B123341E01
    Remove the 2 bolts <C>.

  1. Disconnect the 2 connectors.

  1. Disengage the 2 clamps.

  1. B123339
    Remove the 2 bolts <C>.

  1. Disconnect the connector.

  1. B116791
    Remove the 2 bolts <C>.

  1. B123342
    Disengage the 2 claws and 2 clips, and then remove the console box.


11. REMOVE NO. 2 REAR AIR DUCT (for Automatic Transmission)

  1. C124882
    Remove the 2 clips and the No. 2 rear air duct.


12. REMOVE NO. 2 REAR AIR DUCT (for Manual Transmission)

  1. C124883
    Remove the clip and the No. 2 rear air duct.


13. REMOVE YAW RATE AND ACCELERATION SENSOR

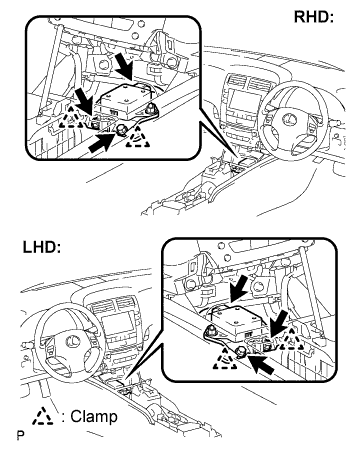

  1. C124908E01
    Disconnect the yaw rate and acceleration sensor connector.

  1. Separate the 2 wire harness clamps.

  1. Remove the 2 bolts and yaw and acceleration rate sensor.

    NOTICE:
    Do not remove the sensor from the bracket.
