Lexus IS250 · Service Manual STEERING

REMOVAL

Removal / installation


1. REMOVE BATTERY

  1. Disconnect the negative (-) battery cable from the battery.

  1. Disconnect the positive (+) battery cable from the battery.

  1. Remove the 2 nuts and the battery clamp.

  1. Remove the battery insulator.

  1. Remove the battery.


2. REMOVE POWER STEERING ECU ASSEMBLY

  1. Remove the No. 1 battery tray support.

  1. C115526
    Remove the 3 bolts.

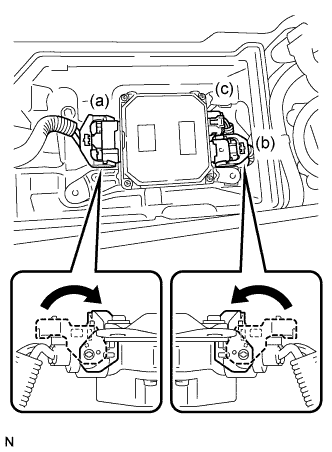

  1. C115527E01
    Release the locks of 2 power steering ECU assembly connectors (a) and (b) and disconnect the connectors.

  1. Disconnect connector (c) from the power steering ECU assembly.

  1. Remove the power steering ECU assembly.
