REMOVAL
Removal / installation
- HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
- Use the same procedures for the RH side and LH side.
| 1. PRECAUTION |
- CAUTION:
- Be sure to read "PRECAUTION" thoroughly before servicing (Click here).
| 2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL |
- CAUTION:
- Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.
| 3. REMOVE COOL AIR INTAKE DUCT SEAL |

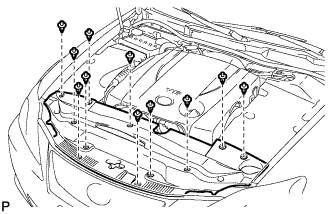

Using a clip remover, remove the 11 clips and cool air intake duct seal.
| 4. REMOVE ENGINE ROOM SIDE COVER LH |
Remove the 5 clips and side cover.
| 5. REPLACE FRONT UPPER FENDER PROTECTOR LH |
Using a clip remover, separate the clip on the rubber portion of the cowl top ventilator louver sub-assembly from the front upper fender protector LH.
Disengage the 3 clips and the claw to remove the front fender protector upper LH.
| 6. REMOVE FRONT BUMPER COVER |
Disengage the 2 claws and remove the lower front bumper cover.
| 7. REMOVE HEADLIGHT ASSEMBLY |

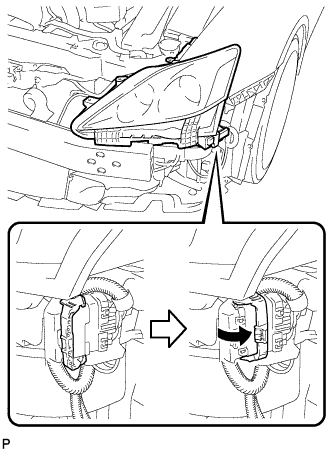

Disconnect the connector as shown in the illustration.
Remove the 3 bolts.
Disengage the headlight bracket pin and remove the headlight assembly.
| 8. REMOVE FRONT AIRBAG SENSOR |
Remove the 2 bolts and front airbag sensor from the body.
Disconnect the connector from the front airbag sensor LH.
