Lexus IS250 · Service Manual RESTRAINTS

ON-VEHICLE INSPECTION

Inspection


INSPECT DRIVER SIDE KNEE AIRBAG ASSEMBLY (VEHICLE NOT INVOLVED IN COLLISION)

  1. Perform a diagnostic system check (Click here).

  1. C122405
    With the driver side knee airbag assembly installed on the vehicle, perform a visual check. If there are any defects as mentioned below, replace the driver side knee airbag assembly with a new one:
    Cuts, minute cracks or marked discoloration on the driver side knee airbag assembly.


INSPECT DRIVER SIDE KNEE AIRBAG ASSEMBLY (VEHICLE INVOLVED IN COLLISION AND AIRBAG HAS NOT DEPLOYED)

  1. Perform a diagnostic system check (Click here).

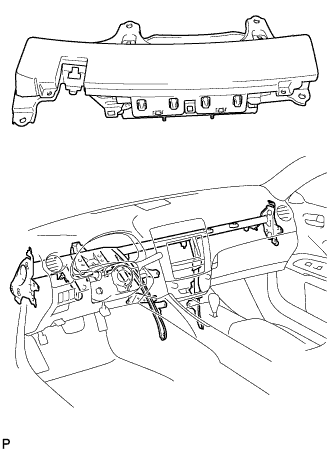

  1. C122407
    With the driver side knee airbag assembly removed from the vehicle, perform a visual check. If there are any defects as mentioned below, replace the driver side knee airbag assembly with a new one:
    1. Cuts, minute cracks or marked discoloration on the driver side knee airbag assembly.
    2. Cracks or other damage to the connector.
    3. Deformation or cracks on the instrument panel reinforcement.

    CAUTION:
    Be sure to follow the correct removal and installation procedures.
