Sliding Roof Control Switch Circuit

DESCRIPTION

The sliding roof drive gear sub-assembly (sliding roof ECU) receives slide switch and tilt switch signals and drives its built-in motor.

WIRING DIAGRAM

INSPECTION PROCEDURE

1. PERFORM ACTIVE TEST BY INTELLIGENT TESTER (SLIDING ROOF OPERATION)

1. Select the Active Test, use the intelligent tester to generate a control command, and then check that the sliding roof slides open/close and tilts up/down.

SLIDE ROOF:

Item	Test Details	Diagnostic Note
SLIDE ROOF	Operate sliding roof CLOSE/UP	-
SLIDE ROOF	Operate sliding roof OPEN/DOWN	-

OK:

Sliding roof operates normally.

NG	REPLACE SLIDING ROOF ECU

OK

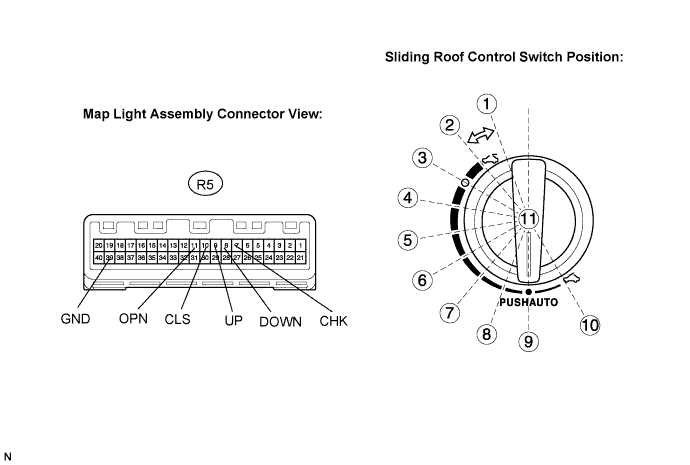

2. INSPECT MAP LIGHT ASSEMBLY

1. Disconnect the R5 connector.

2. Check the sliding roof switch.

3. Measure the resistance of the map light assembly.



   Standard resistance:

   Switch Condition	Tester Connection	Resistance
   1	R5-8 (DOWN) - R5-39 (GND)	Below 1 Ω
   1	R5-9 (UP) - R5-39 (GND)	10 kΩ or higher
   1	R5-10 (CLS) - R5-39 (GND)	10 kΩ or higher
   1	R5-11 (OPN) - R5-39 (GND)	10 kΩ or higher
   2	R5-8 (DOWN) - R5-39 (GND)	Below 1 Ω
   2	R5-9 (UP) - R5-39 (GND)	Below 1 Ω
   2	R5-10 (CLS) - R5-39 (GND)	10 kΩ or higher
   2	R5-11 (OPN) - R5-39 (GND)	10 kΩ or higher
   3	R5-8 (DOWN) - R5-39 (GND)	10 kΩ or higher
   3	R5-9 (UP) - R5-39 (GND)	Below 1 Ω
   3	R5-10 (CLS) - R5-39 (GND)	10 kΩ or higher
   3	R5-11 (OPN) - R5-39 (GND)	10 kΩ or higher
   4	R5-8 (DOWN) - R5-39 (GND)	10 kΩ or higher
   4	R5-9 (UP) - R5-39 (GND)	Below 1 Ω
   4	R5-10 (CLS) - R5-39 (GND)	10 kΩ or higher
   4	R5-11 (OPN) - R5-39 (GND)	Below 1 Ω
   5	R5-8 (DOWN) - R5-39 (GND)	10 kΩ or higher
   5	R5-9 (UP) - R5-39 (GND)	10 kΩ or higher
   5	R5-10 (CLS) - R5-39 (GND)	10 kΩ or higher
   5	R5-11 (OPN) - R5-39 (GND)	Below 1 Ω
   6	R5-8 (DOWN) - R5-39 (GND)	10 kΩ or higher
   6	R5-9 (UP) - R5-39 (GND)	10 kΩ or higher
   6	R5-10 (CLS) - R5-39 (GND)	Below 1 Ω
   6	R5-11 (OPN) - R5-39 (GND)	Below 1 Ω
   7	R5-8 (DOWN) - R5-39 (GND)	10 kΩ or higher
   7	R5-9 (UP) - R5-39 (GND)	Below 1 Ω
   7	R5-10 (CLS) - R5-39 (GND)	Below 1 Ω
   7	R5-11 (OPN) - R5-39 (GND)	Below 1 Ω
   8	R5-8 (DOWN) - R5-39 (GND)	10 kΩ or higher
   8	R5-9 (UP) - R5-39 (GND)	Below 1 Ω
   8	R5-10 (CLS) - R5-39 (GND)	Below 1 Ω
   8	R5-11 (OPN) - R5-39 (GND)	10 kΩ or higher
   9	R5-8 (DOWN) - R5-39 (GND)	Below 1 Ω
   9	R5-9 (UP) - R5-39 (GND)	Below 1 Ω
   9	R5-10 (CLS) - R5-39 (GND)	Below 1 Ω
   9	R5-11 (OPN) - R5-39 (GND)	10 kΩ or higher
   10	R5-8 (DOWN) - R5-39 (GND)	Below 1 Ω
   10	R5-9 (UP) - R5-39 (GND)	10 kΩ or higher
   10	R5-10 (CLS) - R5-39 (GND)	Below 1 Ω
   10	R5-11 (OPN) - R5-39 (GND)	10 kΩ or higher
   11	R5-7 (CHK) - R5-39 (GND)	Below 1 Ω

NG	REPLACE MAP LIGHT ASSEMBLY

OK

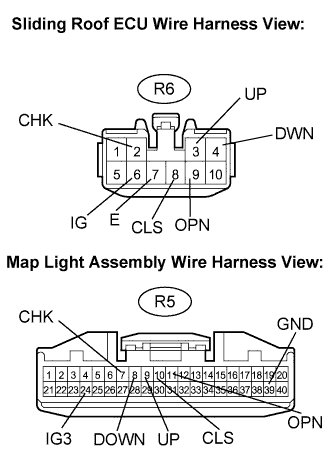

3. CHECK WIRE HARNESS (SLIDING ROOF ECU - MAP LIGHT ASSEMBLY)

1. Disconnect the R6 sliding roof ECU and R5 map light connectors.

2. Check the resistance between the wire harness side connectors.

   Standard resistance:

   Tester Connection	Specified Condition
   R6-6 (IG) - R5-24 (IG3)	Below 1 Ω
   R6-6 (IG) - Body ground	10 kΩ or higher
   R6-2 (CHK) - R5-7 (CHK)	Below 1 Ω
   R6-2 (CHK) - Body ground	10 kΩ or higher
   R6-8 (CLS) - R5-10 (CLS)	Below 1 Ω
   R6-8 (CLS) - Body ground	10 kΩ or higher
   R6-9 (OPN) - R5-11 (OPN)	Below 1 Ω
   R6-9 (OPN) - Body ground	10 kΩ or higher
   R6-4 (DWN) - R5-8 (DOWN)	Below 1 Ω
   R6-4 (DWN) - Body ground	10 kΩ or higher
   R6-3 (UP) - R5-9 (UP)	Below 1 Ω
   R6-3 (UP) - Body ground	10 kΩ or higher
   R5-39 (GND) - Body ground	Below 1 Ω
   R6-7 (E) - Body ground	Below 1 Ω

NG	REPAIR OR REPLACE HARNESS OR CONNECTOR

OK
REPLACE SLIDING ROOF ECU
