Lexus IS250 · Service Manual BODY

DISASSEMBLY

Removal / installation


1. REMOVE REAR BENCH TYPE SEAT CUSHION COVER

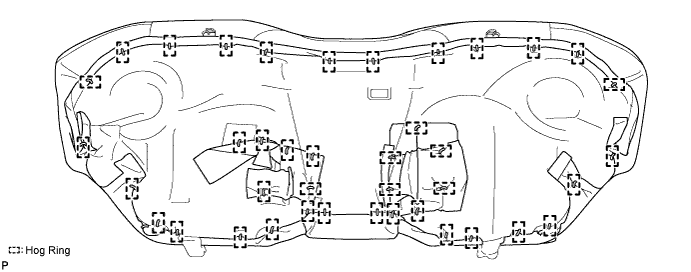

  1. Remove the hog rings.

    B121610E01

  1. Remove the hog rings and seat cushion cover from the seat cushion frame (with pad).

    B121611E01


2. REMOVE REAR CENTER SEAT ARMREST ASSEMBLY

  1. B121612
    Remove the 2 nuts and rear center seat armrest assembly.


3. REMOVE REAR CENTER SEAT ARMREST DOOR SUB-ASSEMBLY (w/ Center Armrest Box)

  1. B121613
    Remove the 2 bolts and hinge.

  1. B121615E01
    Remove the 2 screws and rear center seat armrest door sub-assembly.

  1. Disengage the claw and remove the rear center seat armrest door sub-assembly.


4. REMOVE CENTER ARMREST LOCK SUB-ASSEMBLY (w/ Center Armrest Box)

  1. B121616
    Remove the 4 screws and rear seat armrest plate.

  1. B121617
    Remove the 2 screws and center armrest lock sub-assembly.


5. REMOVE REAR CENTER SEAT ARMREST CUP HOLDER SUB-ASSEMBLY (w/o Center Armrest Box)

  1. B121613
    Remove the 2 bolts and hinge.

  1. B121606
    Separate the pad sub-assembly and box assembly.

  1. Remove the 2 screws and rear center seat armrest cup holder sub-assembly.


6. REMOVE REAR CENTER SEAT ARMREST CUP HOLDER SUB-ASSEMBLY (w/ Center Armrest Box)

  1. B121618E01
    Disengage the 14 claws and remove the rear center seat armrest panel.

  1. B121619
    Remove the 2 screws and rear center seat armrest cup holder sub-assembly.


7. REMOVE REAR CENTER SEAT ARMREST BOX (w/ Center Armrest Box)

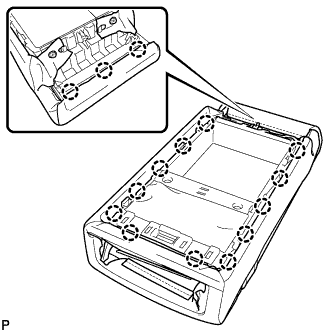

  1. B121620E01
    Disengage the 15 claws and remove the rear center seat armrest cover.

  1. B121621
    Remove the rear center seat armrest box.


8. REMOVE REAR SEAT HEADREST SUPPORT

  1. Disengage the 4 claws and remove the 2 rear seat headrest supports.

    B122758E01


9. REMOVE REAR SEAT HEADREST SUPPORT

10. REMOVE REAR SEAT HEADREST SUPPORT

  1. B122759
    Disengage the 2 claws and remove the rear seat headrest support.


11. REMOVE REAR SEAT HEADREST SUPPORT

12. REMOVE REAR SEAT SHOULDER BELT GUIDE RH

  1. B121623
    Remove the 3 screws and rear seat shoulder belt guide RH.


13. REMOVE REAR SEAT SHOULDER BELT GUIDE LH

  1. B121624
    Remove the 6 screws and rear seat shoulder belt guide LH.


14. REMOVE REAR BENCH TYPE SEATBACK COVER

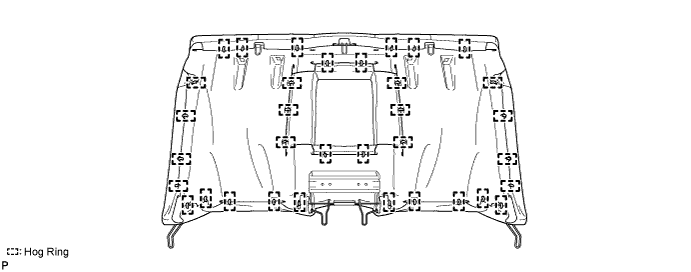

  1. Remove the hog rings.

    B121625E01

  1. Remove the hog rings and seatback cover from the seatback frame (with pad).

    B121626E01
