Lexus IS250 · Service Manual ENGINE

REMOVAL

Removal / installation


1. REMOVE COOL AIR INTAKE DUCT SEAL

  1. A127530
    Remove the 11 clips and intake duct seal.


2. REMOVE ENGINE ROOM RH SIDE COVER

  1. A123703E01
    Remove the 2 clips and side cover.


3. REMOVE FUEL PUMP RESISTOR

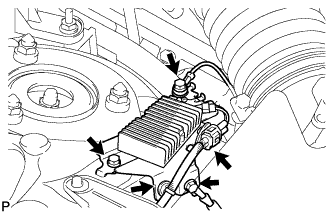

  1. A127002
    Disconnect the connector and clamp from the fuel pump resistor.

  1. Remove the 3 bolts and fuel pump resistor, and disconnect the ground wires.
