Certification ECU Power Source Circuit

DESCRIPTION

This circuit provides power to operate the certification ECU.

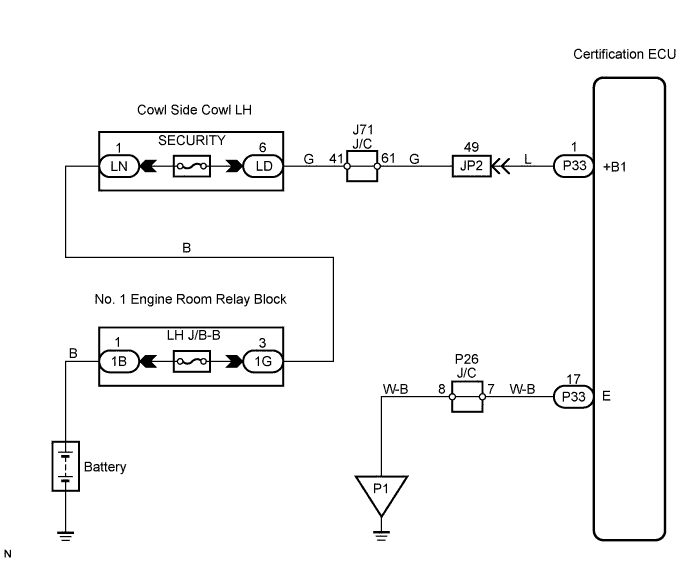

WIRING DIAGRAM

INSPECTION PROCEDURE

1. INSPECT FUSE (SECURITY)

1. Remove the SECURITY fuse from the cowl side junction block RH.

2. Measure the resistance of the fuse.

   Standard resistance:

   Below 1 Ω


NG	REPLACE FUSE

OK

2. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - BATTERY)

1. Disconnect the P33 ECU connector.

2. Measure the voltage according to the value(s) in the table below.

   Standard voltage:

   Tester Connection	Condition	Specified Condition
   P33-1 (+B1) - Body ground	Always	10 to 14 V

NG	REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

3. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - BODY GROUND)

1. Measure the resistance according to the value(s) in the table below.

   Standard resistance:

   Tester Connection	Condition	Specified Condition
   P33-17 (E) - Body ground	Always	Below 1 Ω

NG	REPAIR OR REPLACE HARNESS OR CONNECTOR

OK
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
