P0136

DESCRIPTION

HINT:

Sensor 2 refers to the sensor mounted behind the Three-Way Catalyst Converter (TWC) and located far from the engine assembly.

In order to obtain a high purification rate of the carbon monoxide (CO), hydrocarbon (HC) and nitrogen oxide (NOx) components in the exhaust gas, a TWC (Three-Way Catalytic Converter) is used. For the most efficient use of the TWC, the air-fuel ratio must be precisely controlled so that it is always close to the stoichiometric air-fuel level. For the purpose of helping the ECM to deliver accurate air-fuel ratio control, a Heated Oxygen (HO2) sensor is used.

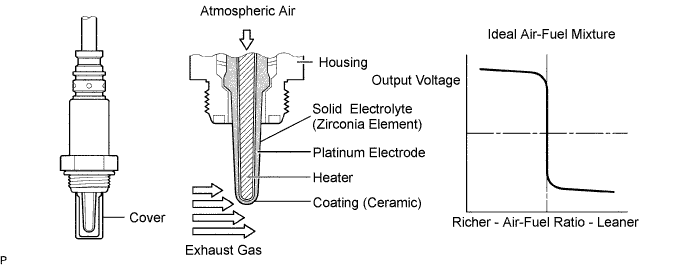

The HO2 sensor is located behind the TWC, and detects the oxygen concentration in the exhaust gas. Since the sensor is integrated with the heater that heats the sensing portion, it is possible to detect the oxygen concentration even when the intake air volume is low (the exhaust gas temperature is low).
When the air-fuel ratio becomes lean, the oxygen concentration in the exhaust has is rich. The HO2 sensor informs the ECM that the post-TWC air-furl ratio is lean (low voltage, i.e. less than 0.45 V).
Conversely, when the air-fuel ratio is richer than the stoichiometric air-fuel level, the oxygen concentration in the exhaust gas becomes lean. The HO2 sensor informs the ECM that the post-TWC air-fuel ratio is rich (high voltage, i.e. more than 0.45 V). The HO2 sensor has the property of changing its output voltage drastically when the air-fuel ratio is close to the stoichiometric level.
The ECM uses the supplementary information from the HO2 sensor to determine whether the air-fuel ratio after the TWC is rich or lean, and adjusts the fuel injection time accordingly. Thus, if the HO2 sensor is working improperly due to internal malfunctions. The ECM is unable to compensate for deviations in the primary air-fuel ratio control.

DTC No.	DTC Detection Condition	Trouble Area
P0136*1 P0156*1	During active air-fuel ratio control, following conditions (a) and (b) are met for certain period of time (2 trip detection logic) (a) Heated Oxygen sensor voltage does not decrease to less than 0.25 V. Heated Oxygen sensor voltage does not increase to more than 0.59 V.	Open or short in HO2 sensor (bank 1, 2 sensor 2) circuit HO2 sensor (bank 1, 2 sensor 2) HO2 sensor heater (bank 1, 2 sensor 2) Air-Fuel Ratio (A/F) sensor (bank 1, 2 sensor 1) EFI MAIN relay Gas leakage from exhaust system
P0136*2 P0156*2	Following condition is met for 6 minutes or more (2 trip detection logic) Heated oxygen sensor voltage does not switched between lower than 0.4 V and 0.5 V or higher.	Open or short in HO2 sensor (bank 1, 2 sensor 2) circuit HO2 sensor (bank 1, 2 sensor 2) HO2 sensor heater (bank 1, 2 sensor 2) Air-Fuel Ratio (A/F) sensor (bank 1, 2 sensor 1) EFI MAIN relay Gas leakage from exhaust system
P0137*1 P0157	Following condition is met for 20 seconds during active air-fuel ratio control (2 trip detection logic): Heated oxygen sensor voltage is lower than 0.25 V during rich fuel -trim.	Open in HO2 sensor (bank 1, 2 sensor 2) circuit HO2 sensor (bank 1, 2 sensor 2) ECM internal circuit malfunction
P0138*1 P0158	Following condition is met for 20 seconds during active air-fuel ratio control (2 trip detection logic): Heated oxygen sensor voltage is higher than 0.59 V during lean fuel -trim.	Short in HO2 sensor (bank 1, 2 sensor 2) circuit HO2 sensor (bank 1, 2 sensor 2) ECM internal circuit malfunction

*1: For Europe and Australia
*2: For Turkey

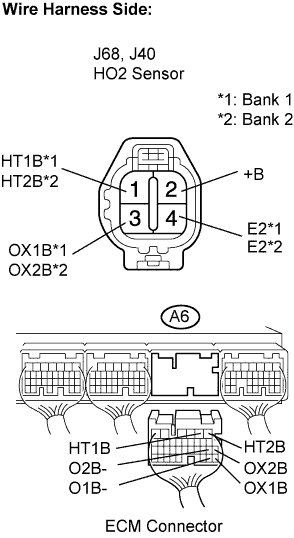

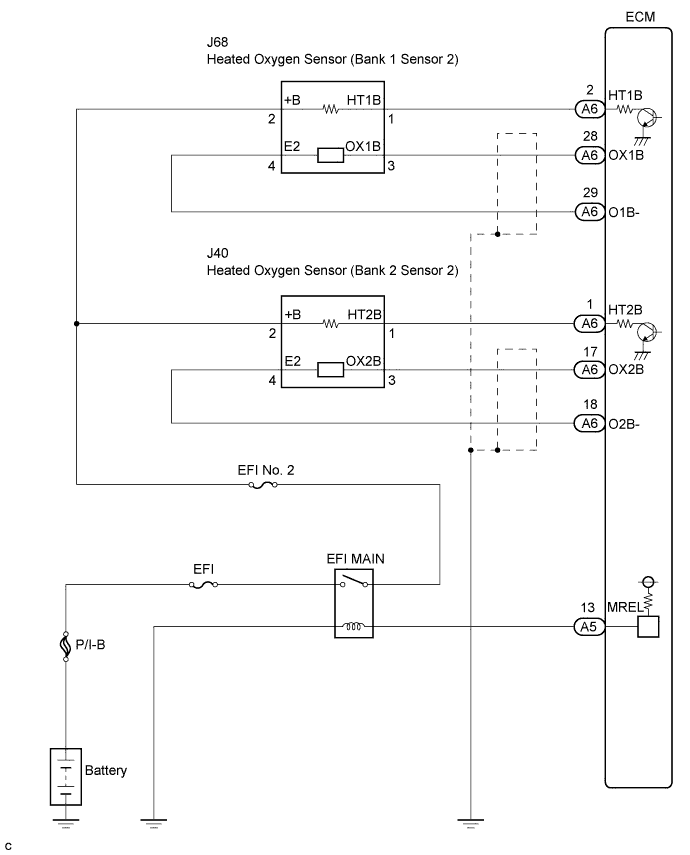

WIRING DIAGRAM

CONFIRMATION DRIVING PATTERN

1. For Europe and Australia:


   HINT:

   1. This confirmation driving pattern is used in steps 5, 8 and 11 of the following diagnostic troubleshooting procedure when using an intelligent tester.

   2. Performing this confirmation pattern will activate the Heated Oxygen (HO2) sensor monitor. (The catalyst monitor is performed simultaneously.) This is very useful for verifying the completion of a repair.


   NOTICE:

   This test will not be completed if the vehicle is driven under absolutely constant speed conditions such as with cruise control activated.



   1. Connect an intelligent tester to the DLC3.

   2. Turn the engine switch on (IG).

   3. Turn the tester on.

   4. Clear DTCs (where set) (Click here).

   5. Start the engine and warm it up (Procedure "A").

   6. Drive the vehicle at between 40 mph and 70 mph (64 km/h and 113 km/h) for at least 10 minutes (Procedure "B").

   7. On the tester, select the following menu items: Powertrain / Engine / DTC / Pending and check if any DTCs (any pending DTCs) are set.


1. For Turkey:


   1. (a) Connect the intelligent tester to the DLC3.

   1. (b) Switch the ECM From normal mode to check mode using the tester (Click here).

   1. (c) Start the engine and warm it up until the engine coolant temperature reaches more than 75°C (167°F).

   1. (d) Drive the vehicle at 60 km/h (38 mph) or more for 40 seconds or more.

   1. (e) Let the engine idle for 10 seconds or more.

   1. (f) Perform steps (d) and (e) 12 times.


   HINT:

   If a malfunction exists, the MIL illuminates during step (f).

   NOTICE:

   If the conditions in this test are not strictly followed, malfunctions may not be detected. If you do not have the intelligent tester, turn the engine switch off after performing steps from (c) to (f), then perform steps (c) to (f) again.

INSPECTION PROCEDURE

HINT:

Intelligent tester only:

Malfunctioning areas can be identified by performing the Control the Injection Volume for A/F Sensor function provided in the Active Test. The Control the Injection Volume for A/F Sensor function can help to determine whether the Air-Fuel Ratio (A/F) sensor, Heated Oxygen (HO2) sensor and other potential trouble areas are malfunctioning.

The following instructions describe how to conduct the Control the Injection Volume for A/F Sensor operation using an intelligent tester.

1. Connect the intelligent tester to the DLC3.

2. Start the engine and turn the tester ON.

3. Warm up the engine at engine speed of 2,500 rpm for approximately 90 seconds.

4. On the tester, enter the following menus: Power train / Engine / Active Test / Control the Injection Volume for A/F Sensor.

5. Perform the Control the Injection Volume for A/F Sensor operation with the engine in an idling condition (press the RIGHT or LEFT button to change the fuel injection volume).

6. Monitor the voltage outputs of the A/F and HO2 sensors (AFS B1S1 and O2S B1S2 or AFS B2S1 and O2S B2S2) displayed on the tester.


HINT:

1. The Control the Injection Volume for A/F Sensor operation lowers the fuel injection volume by 12.5 % or increases the injection volume by 25 %.

2. Each sensor reacts in accordance with increases in the fuel injection volume.


Tester Display (Sensor)	Injection Volume	Status	Voltage
AFS B1S1 or AFS B2S1 (A/F)	+25 %	Rich	Less than 3.0
AFS B1S1 or AFS B2S1 (A/F)	-12.5 %	Lean	More than 3.35
O2S B1S2 or O2S B2S2 (HO2)	+25 %	Rich	More than 0.55
O2S B1S2 or O2S B2S2 (HO2)	-12.5 %	Lean	Less than 0.4

NOTICE:

The Air-Fuel Ratio (A/F) sensor has an output delay of a few seconds and the Heated Oxygen (HO2) sensor has a maximum output delay of approximately 20 seconds.

Case	A/F Sensor (Sensor 1) Output Voltage		HO2 Sensor (Sensor 2) Output Voltage		Main Suspected Trouble Area
1	Injection Volume +25 % -12.5 %		Injection Volume +25 % -12.5 %		-
	Output Voltage More than 3.35 V Less than 3.0 V		Output Voltage More than 0.55 V Less than 0.4 V
2	Injection Volume +25 % -12.5 %		Injection Volume +25 % -12.5 %		A/F sensor A/F sensor heater A/F sensor circuit
	Output Voltage Almost no reaction		Output Voltage More than 0.55 V Less than 0.4 V
3	Injection Volume +25 % -12.5 %		Injection Volume +25 % -12.5 %		HO2 sensor HO2 sensor heater HO2 sensor circuit
	Output Voltage More than 3.35 V Less than 3.0 V		Output Voltage Almost no reaction
4	Injection volume +25 % -12.5 %		Injection Volume +25 % -12.5 %		Injector Fuel pressure Gas leakage from exhaust system (Air-fuel ratio extremely lean or rich)
	Output Voltage Almost no reaction		Output Voltage Almost no reaction

1. Following the Control the Injection Volume for A/F Sensor procedure enables technicians to check and graph the voltage outputs of both the A/F and HO2 sensors.

2. The following A/F Control procedure enables the technician to check and graph the voltage output of both the heated oxygen sensors. To display the graph, select the following menu items on the tester: View / Line Graph.


HINT:

1. If other DTCs relating to different systems that have terminal E2 as the ground terminal are output simultaneously, terminal E2 may have an open circuit.

2. Read freeze frame data using the intelligent tester. Freeze frame data records the engine conditions when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was running or stopped, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.

3. If the OX1B wire from the ECM connector is short-circuited to the +B wire, DTC P0136 will be set.

4. If the OX2B wire from the ECM connector is short-circuited to the +B wire, DTC P0156 will be set.


1. READ OUTPUT DTC

1. Connect the intelligent tester to the DLC3.

2. Turn the engine switch on (IG) and turn the tester ON.

3. Enter the following menus: Power train / Engine / DTC.

4. Read DTCs.


   Result:

   Display (DTC Output)	Proceed to
   P0138 or P0158	A
   P0136 or P0156	B

B	Go to step 7

A

2. READ VALUE OF INTELLIGENT TESTER (OUTPUT VOLTAGE OF HEATED OXYGEN SENSOR)

1. Connect the intelligent tester to the DLC3.

2. Turn the engine switch on (IG) and turn the tester ON.

3. Enter the following menus: Power train / Engine / Data List / O2S B1 S2 or O2S B2 S2.

4. Allow the engine to idle.

5. Read the Heated Oxygen (HO2) sensor output voltage while idling.


   Result:

   HO2 Sensor Output Voltage	Proceed to
   More than 1.2 V	A
   Less than 1.0 V	B

B	Go to step 5

A

3. CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT)

1. Turn the engine switch off and wait for 5 minutes.

2. Disconnect the A6 ECM connector.

3. Measure the resistance.

   Standard resistance:

   Tester Connection	Specified Condition
   HT1B (A6-2) - OX1B (A6-28)	10 kΩ or higher
   HT2B (A6-1) - OX2B (A6-17)	10 kΩ or higher

4. Reconnect the ECM connector.

NG	Go to step 4

OK
REPLACE ECM

4. INSPECT HEATED OXYGEN SENSOR (CHECK FOR SHORT)

1. Disconnect the J68 or J40 HO2 sensor connector.

2. Measure the resistance.

   Standard resistance (Bank 1 sensor 2):

   Tester Connection	Specified Condition
   +B (2) - E2 (4)	10 kΩ or higher
   +B (2) - OX1B (3)	10 kΩ or higher

   Standard resistance (Bank 2 sensor 2):

   Tester Connection	Specified Condition
   +B (2) - E2 (4)	10 kΩ or higher
   +B (2) - OX2B (3)	10 kΩ or higher

NG	REPLACE HEATED OXYGEN SENSOR

OK

5. PERFORM CONFIRMATION DRIVING PATTERN

NEXT

6. CHECK WHETHER DTC OUTPUT RECURS (DTC P0138 or P0158)

1. On the intelligent tester, enter the following menus: Power train / Engine / DTC.

2. Read DTCs.


   Result:

   Display (DTC Output)	Proceed to
   P0138 or P0158	A
   No output	B

B	CHECK FOR INTERMITTENT PROBLEMS

A
REPLACE HEATED OXYGEN SENSOR

7. READ VALUE OF INTELLIGENT TESTER (OUTPUT VOLTAGE OF HEATED OXYGEN SENSOR)

1. Connect the intelligent tester to the DLC3.

2. Turn the engine switch on (IG) and turn the tester ON.

3. Start the engine.

4. Enter the following menus: Power train / Engine / Data List / O2S B1 S2 or O2S B1 S2.

5. After warming up the engine, run the engine at an engine speed of 2,500 rpm for 3 minutes.

6. Read the output voltage of the HO2 sensor when the engine rpm is suddenly increased.

   HINT:

   Quickly accelerate the engine to 4,000 rpm 3 times using the accelerator pedal.

   Standard voltage:

   Fluctuates between 0.4 V or less and 0.5 V or more.


NG	Go to step 14

OK

8. PERFORM CONFIRMATION DRIVING PATTERN

NEXT

9. CHECK WHETHER DTC OUTPUT RECURS (DTC P0136 or P0156)

1. On the intelligent tester, enter the following menus: Power train / Engine / DTC.

2. Read DTCs.


   Result:

   Display (DTC Output)	Proceed to
   P0136 or P0156	A
   No output	B

B	CHECK FOR INTERMITTENT PROBLEMS

A

10. REPLACE HEATED OXYGEN SENSOR

NEXT

11. PERFORM CONFIRMATION DRIVING PATTERN

NEXT

12. CHECK WHETHER DTC OUTPUT RECURS (DTC P0136 or P0156)

1. On the intelligent tester, enter the following menus: Power train / Engine / DTC.

2. Read DTCs.


   Result:

   Display (DTC Output)	Proceed to
   P0136 or P0156	A
   No output	B

B	END

A

13. PERFORM ACTIVE TEST BY INTELLIGENT TESTER (INJECTION VOLUME)

1. Connect the intelligent tester to the DLC3.

2. Start the engine and turn the tester ON.

3. Warm up the engine.

4. Enter the following menus: Power train / Engine / Active Test / Control the Injection Volume.

5. Change the fuel injection volume using the tester, monitoring the output voltage of Air-Fuel Ratio (A/F) and HO2 sensor displayed on the tester.

   HINT:

   1. Change the fuel injection volume within the range of -12 % and +12 %. The injection volume can be changed in 1 % graduations within the range.

   2. The A/F sensor is displayed as AFS B1 S1 or AFS B2 S1, and the HO2 sensor is displayed as O2S B1 S2 or O2S B2 S2, on the intelligent testers.





   Result:

   Tester Display (Sensor)	Voltage Variation	Proceed to
   AFS B1S1 (A/F) AFS B2S1 (A/F)	Alternates between more and less than 3.3 V	OK
   AFS B1S1 (A/F) AFS B2S1 (A/F)	Remains at more than 3.3 V	NG
   AFS B1S1 (A/F) AFS B2S1 (A/F)	Remains at less than 3.3 V	NG

   HINT:

   A normal HO2 sensor voltage (O2S B1 S2 or O2S B2 S2) reacts in accordance with increases and decreases in fuel injection volumes. When the A/F sensor voltage remains at either less or more than 3.3 V despite the HO2 sensor indicating a normal reaction, the A/F sensor is malfunctioning.




NG	REPLACE AIR FUEL RATIO SENSOR

OK
CHECK AND REPAIR EXTREMELY RICH OR LEAN ACTUAL AIR FUEL RATIO (INJECTOR, FUEL PRESSURE, GAS LEAKAGE FROM EXHAUST SYSTEM)

14. CHECK EXHAUST GAS LEAKAGE

OK:

No gas leakage.

NG	REPAIR OR REPLACE EXHAUST GAS LEAKAGE POINT

OK

15. INSPECT HEATED OXYGEN SENSOR (HEATER RESISTANCE)

1. Disconnect the J68 or J40 HO2 sensor connector.

2. Measure the resistance.

   Standard resistance (Bank 1 sensor 2):

   Tester Connection	Condition	Specified Condition
   HT1B (1) - +B (2)	20°C (68°F)	11 to 16 Ω
   HT1B (1) - E2 (4)	-	10 kΩ or higher

   Standard resistance (Bank 2 sensor 2):

   Tester Connection	Condition	Specified Condition
   HT2B (1) - +B (2)	20°C (68°F)	11 to 16 Ω
   HT2B (1) - E2 (4)	-	10 kΩ or higher

NG	REPLACE HEATED OXYGEN SENSOR

OK

16. INSPECT INTEGRATION RELAY (EFI MAIN RELAY)

1. Remove the integration relay from the engine room No. 2 junction block.

2. Measure the resistance of the EFI MAIN relay.

   Standard resistance:

   Terminal Connection	Specified Condition
   2A-8 - 2A-5	10 kΩ or higher
   2A-8 - 2A-5	Below 1 Ω (when battery voltage applied to terminals 2A-7 and 2A-6)

3. Reinstall the integration relay.

NG	REPLACE INTEGRATION RELAY

OK

17. CHECK HARNESS AND CONNECTOR (HEATED OXYGEN SENSOR - ECM)

1. Disconnect the J68 and J40 HO2 sensor connector.

2. Turn the engine switch on (IG).

3. Measure the voltage between the +B terminal of the HO2 sensor connector and body ground.

   Standard voltage:

   Terminal Connection	Specified Condition
   +B (J68-2) - Body ground	9 to 14 V
   +B (J40-2) - Body ground	9 to 14 V

4. Turn the engine switch off.

5. Disconnect the A6 ECM connector.

6. Measure the resistance.

   Standard resistance (Check for open):

   Terminal Connection	Specified Condition
   HT1B (J68-1) - HT1B (A6-2)	Below 1 Ω
   OX1B (J68-3) - OX1B (A6-28)	Below 1 Ω
   E2 (J68-4) - O1B- (A6-29)	Below 1 Ω
   HT2B (J40-1) - HT2B (A6-1)	Below 1 Ω
   OX2B (J40-3) - OX2B (A6-17)	Below 1 Ω
   E2 (J40-4) - O2B- (A6-18)	Below 1 Ω

   Standard resistance (Check for short):

   Terminal Connection	Specified Condition
   HT1B (J68-1) or HT1B (A6-2) - Body ground	10 kΩ or higher
   OX1B (J68-3) - OX1B (A6-28) - Body ground	10 kΩ or higher
   E2 (J68-4) or O1B- (A6-29) - Body ground	10 kΩ or higher
   HT2B (J40-1) or HT2B (A6-1) - Body ground	10 kΩ or higher
   OX2B (J40-3) or OX2B (A6-17) - Body ground	10 kΩ or higher
   E2 (J40-4) or O2B- (A6-18) - Body ground	10 kΩ or higher

7. Reconnect the HO2 sensor connector.

8. Reconnect the ECM connector.


NG	REPAIR OR REPLACE HARNESS OR CONNECTOR

OK
REPLACE HEATED OXYGEN SENSOR
