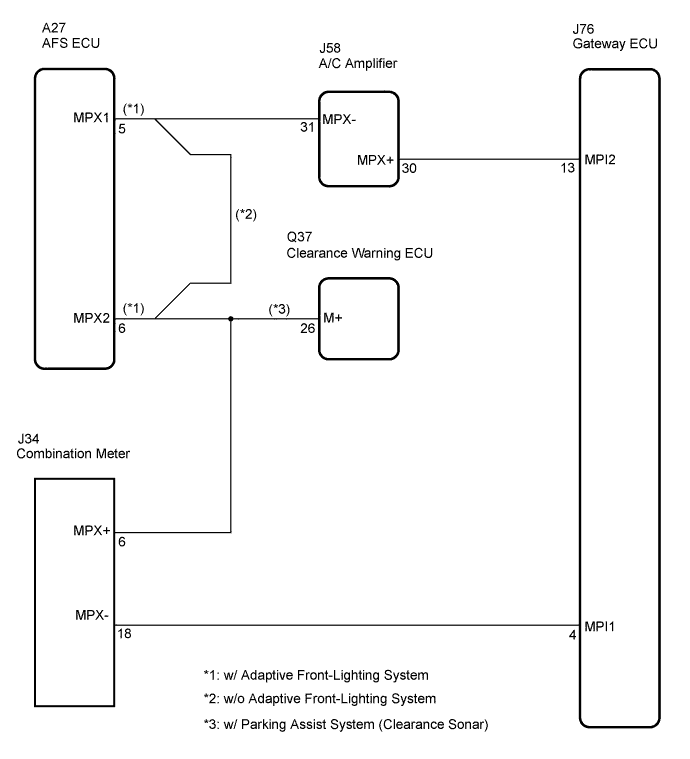

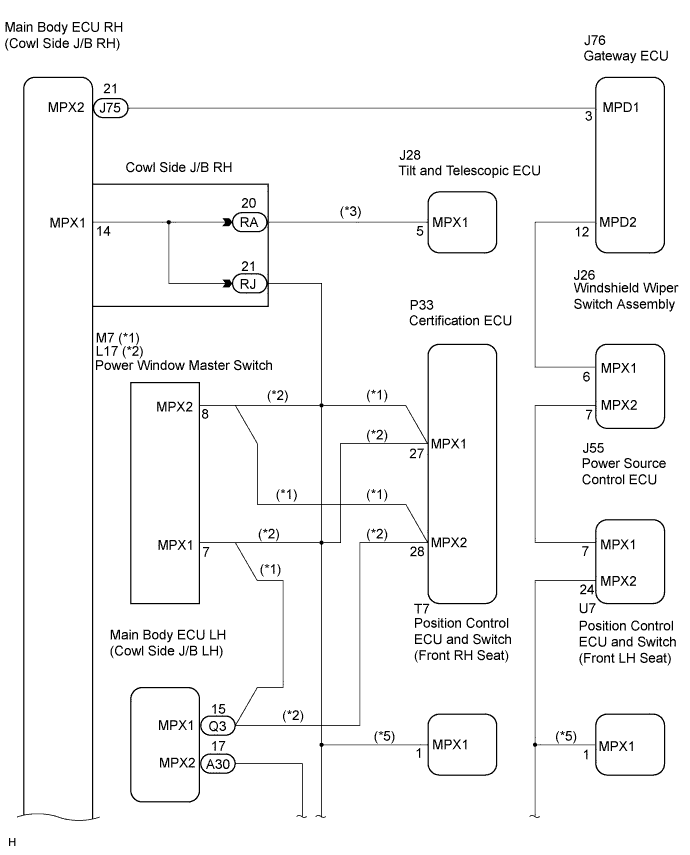

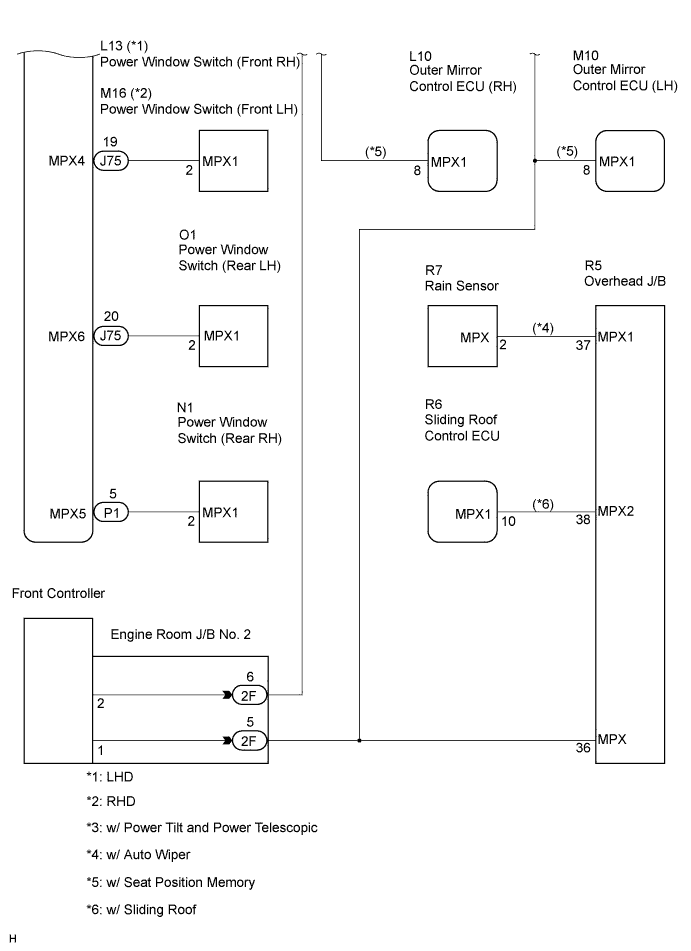

SYSTEM DIAGRAM
System information
| Item |
Details |
| Number of BEAN connected ECUs *1 |
20 |
| Number of CAN connected ECUs *1 |
10 |
| Number of AVC-LAN connected ECUs *1 |
6 |
| Gateway function between BEAN and diagnosis |
Gateway ECU |
| Gateway function between BEAN and AVC-LAN |
Gateway ECU |
| Gateway function between BEAN and CAN |
Gateway ECU |
| ECU in charge of vehicle customization information |
Gateway ECU |
| Protocol |
CAN, BEAN and AVC-LAN |
- HINT:
- *1: Optional ECUs are also included.
