REMOVAL
Removal / installation
| 1. REMOVE FRONT WHEEL |
| 2. REMOVE ENGINE UNDER COVER |
| 3. REMOVE REAR ENGINE UNDER COVER LH |

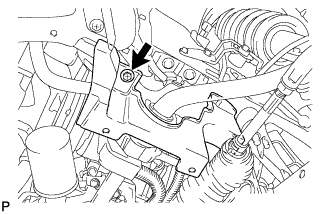

Remove the bolt and engine under cover LH.
| 4. REMOVE REAR ENGINE UNDER COVER RH |
- HINT:
- Remove the RH side following the same procedure as for the LH side.
| 5. REMOVE FRONT HEIGHT CONTROL SENSOR LINK ASSEMBLY |
| 6. REMOVE FRONT STABILIZER LINK ASSEMBLY LH |
Remove the 2 nuts and the front stabilizer link assembly LH.
- HINT:
- If the ball joint turns together with the nut, use a hexagon (6 mm) wrench to hold the stud.
| 7. REMOVE FRONT STABILIZER LINK ASSEMBLY RH |
- HINT:
- Remove the RH side following the same procedure as for the LH side.
| 8. REMOVE FRONT NO. 2 STABILIZER BRACKET LH |

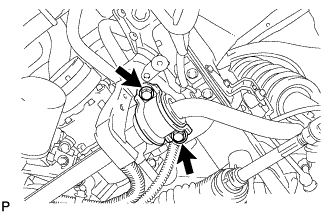

Remove the 2 bolts and the front No. 2 stabilizer bracket LH from the front suspension crossmember.
| 9. REMOVE FRONT NO. 2 STABILIZER BRACKET RH |
- HINT:
- Remove the RH side following the same procedure as for the LH side.
| 10. REMOVE FRONT NO. 1 STABILIZER BRACKET LH |

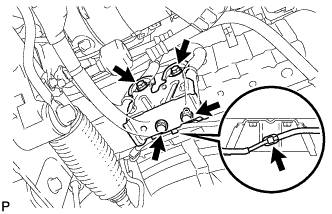

Remove the 4 bolts and the front No. 1 stabilizer bracket LH from the frame.
| 11. REMOVE FRONT NO. 1 STABILIZER BRACKET RH |
- HINT:
- Remove the RH side following the same procedure as for the LH side.
| 12. REMOVE FRONT NO. 1 STABILIZER BAR BUSHING |
Remove the 2 front No. 1 stabilizer bar bushings from the front stabilizer bar.
| 13. REMOVE FRONT STABILIZER BAR |
Remove the front stabilizer bar from the vehicle.
