Lexus IS250 · Service Manual BODY

Home › BODY › SEAT › FRONT POWER SEAT CONTROL SYSTEM (w/o Seat Position Memory System)

SYSTEM DIAGRAM

System information

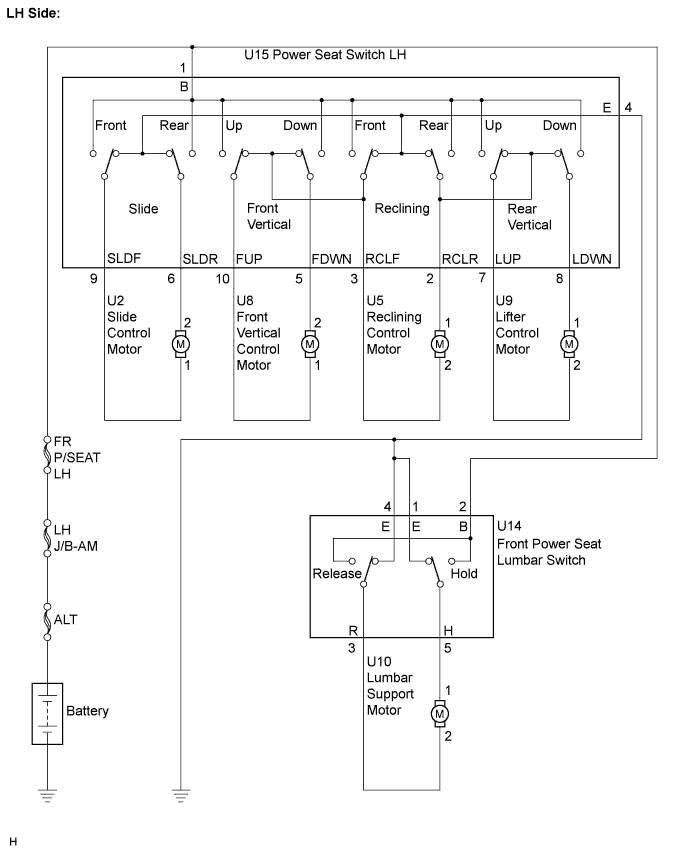

B127144E07

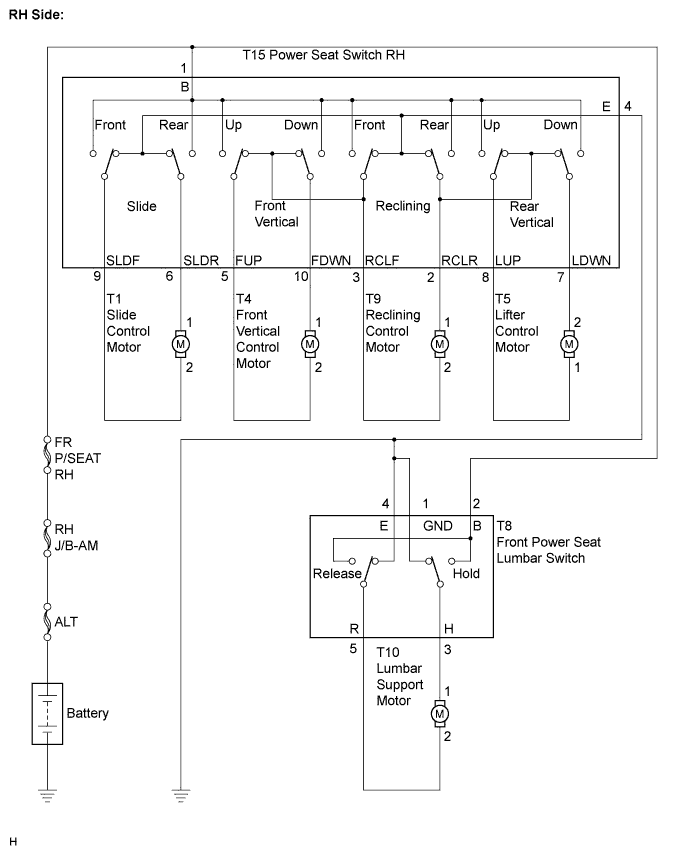

B127144E08

← PARTS LOCATION OPERATION CHECK →
