B1210
Diagnostic trouble codes
DESCRIPTION
- HINT:
- This DTC is only output on vehicles equipped with an entry and start system.
- This DTC is detected when communication between the power source control ECU and gateway ECU stops for more than 10 seconds.
| DTC No. |
DTC Detection Condition |
Trouble Area |
| B1210 |
Power source control ECU communication stops |
|
WIRING DIAGRAM


INSPECTION PROCEDURE
| 1. INSPECT FUSE (AM2) |
Remove the AM2 fuse from the main body ECU (cowl side J/B RH).
Measure the resistance of the fuse.
- Standard resistance:
- Below 1 Ω
|
|
||||
| OK | |
| 2. CHECK WIRE HARNESS (POWER SOURCE CONTROL ECU - BATTERY AND BODY GROUND) |
Disconnect the J55 ECU connector.

Measure the resistance and voltage of the wire harness side connector.
- Standard voltage:
Tester Connection
Condition
Specified Condition
J55-33 (AM1) - Body ground
Always
10 to 14 V
J55-12 (AM2) - Body ground
Always
10 to 14 V
- Standard resistance:
Tester Connection
Specified Condition
J55-6 (GND2) - Body ground
Below 1 Ω
|
|
||||
| OK | |
| 3. CHECK RESISTANCE OF COMMUNICATION LINE |

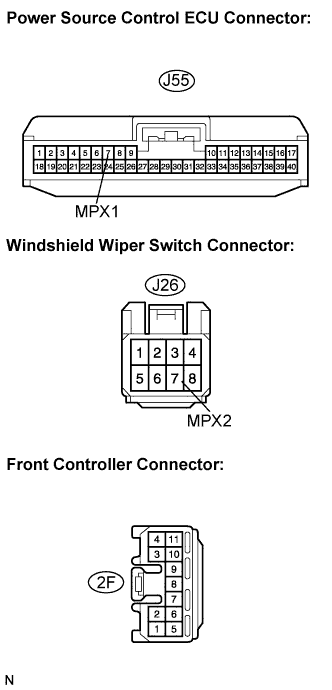

Disconnect the J55, J26 and 2F ECU connectors.

Measure the resistance between the specified terminals on the wire harness side connectors.
- Standard resistance:
Tester Connection
Specified Condition
MPX1 (J55-7) - MPX2 (J26-7)
Below 1 Ω
MPX2 (J55-24) - 2F-5
Below 1 Ω
- Result:
Result
Proceed to
Both are OK
A
One is OK
B
Both are NG
C
|
|
||||
|
|
||||
| A | ||
| ||
