B1296
Diagnostic trouble codes
DESCRIPTION
This DTC is detected when communication between the front controller and gateway ECU stops for more than 10 seconds.| DTC No. |
DTC Detection Condition |
Trouble Area |
| B1296 |
Front controller communication stops |
|
WIRING DIAGRAM


INSPECTION PROCEDURE
- HINT:
- When "+B of GND short malfunction of communication bus" DTCs (B1214 and B1215) are detected at the same time as "communication stop" DTC B1296, repair the "+B or GND short malfunction of communication bus" DTCs first.
| 1. INSPECT FUSE (MPX-B) |
Remove the MPX-B fuse from the engine room J/B No. 1.
Measure the resistance of the fuse.
- Standard resistance:
- Below 1 Ω
|
|
||||
| OK | |
| Go to step 3 |
| 2. CHECK WIRE HARNESS (FRONT CONTROLLER - BATTERY AND BODY GROUND) |
Disconnect the 2E and 2F ECU connectors.

Measure the voltage and resistance of the wire harness side connectors.
- Standard voltage:
Tester Connection
Condition
Specified Condition
2E-4 - Body ground
Always
10 to 14 V
- Standard resistance:
Tester Connection
Specified Condition
2F-1 - Body ground
Below 1 Ω
|
|
||||
| OK | |
| 3. CHECK RESISTANCE OF COMMUNICATION LINE |

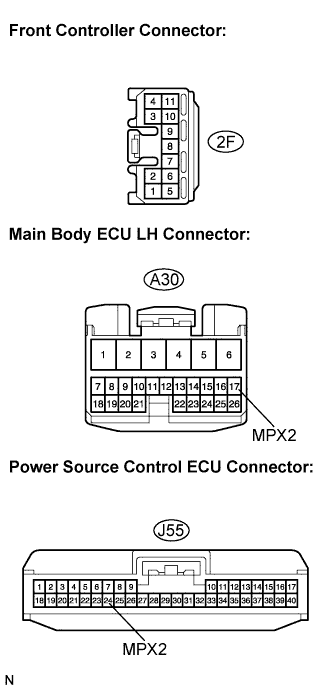

Disconnect the 2F, A30 and J55 ECU connectors.

Measure the resistance between the specified terminals on the wire harness side connectors.
- Standard resistance:
Tester Connection
Specified Condition
2F-6 - MPX2 (A30-17)
Below 1 Ω
2F-5 - MPX2 (J55-24)
Below 1 Ω
- Result:
Result
Proceed to
Both are OK
A
One is OK
B
Both are NG
C
|
|
||||
|
|
||||
| A | ||
| ||
