ON-VEHICLE INSPECTION

Inspection


INSPECT FRONT DOOR PANEL SUB-ASSEMBLY

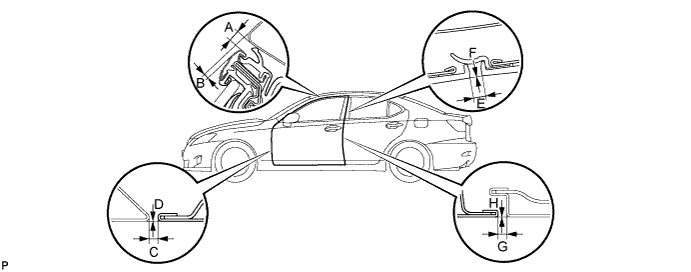

  1. Check that the clearance measurements of areas A to H are within each standard range.

    B125187E01

    Standard clearance:
    Area
    		 Measurement
    		 Area
    		 Measurement
    A
    		 3.3 to 6.3 mm (0.130 to 0.248 in.)
    		 E
    		 2.8 to 5.8 mm (0.110 to 0.228 in.)
    B
    		 1.0 to 4.0 mm (0.039 to 0.158 in.)
    		 F
    		 -1.5 to 1.5 mm (-0.059 to 0.059 in.)
    C
    		 2.5 to 5.5 mm (0.098 to 0.217 in.)
    		 G
    		 2.5 to 5.5 mm (0.098 to 0.217 in.)
    D
    		 -1.5 to 1.5 mm (-0.059 to 0.059 in.)
    		 H
    		 -1.5 to 1.5 mm (-0.059 to 0.059 in.)
