Lexus IS250 · Service Manual BODY

INSTALLATION

Removal / installation


1. INSTALL SEAT MEMORY SWITCH

  1. B126714
    Install the switch with the 2 screws.

  1. Connect the connector.


2. INSTALL FRONT INNER DOOR GLASS WEATHERSTRIP

  1. B124495
    Engage the 4 claws and install the front door inner glass weatherstrip.


3. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY

  1. B124496
    Connect the rear door lock remote control cable and rear door inside locking cable to the front inside handle.

  1. Connect each connector.

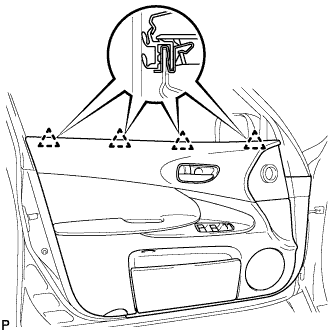

  1. B122645
    Engage the front door trim board with the 4 clips of the front door inner glass weatherstrip.

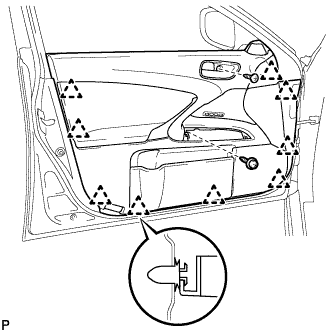

  1. B122644
    Engage the 9 clips and install the front door trim board to the front door panel.

  1. Install the 2 screws.


4. INSTALL COURTESY LIGHT ASSEMBLY

  1. Connect the connector.

  1. B122643
    Engage the claw and install the courtesy light assembly.


5. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

  1. Connect each connector.

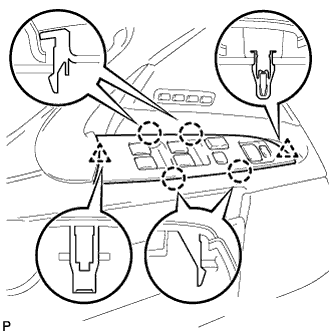

  1. B124498
    Engage the 4 claws and 2 clips, and install the power window regulator master switch assembly.


6. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG LH

  1. B124499
    Engage the 3 claws and install the front door inside handle bezel plug.
