REMOVAL

Removal / installation


1. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG LH

  1. B122641
    Using a screwdriver wrapped with protective tape, disengage the 3 claws, and remove the front door inside handle bezel plug.


2. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

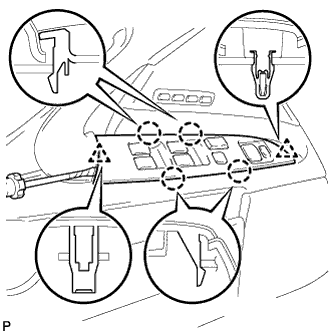

  1. B122642
    Using a screwdriver wrapped with protective tape, disengage the 4 claws and the 2 clips.

  1. Disconnect the connector and remove the power window regulator master switch assembly.


3. REMOVE COURTESY LIGHT ASSEMBLY

  1. B122643
    Disengage the claw and remove the courtesy light assembly.

  1. Disconnect the connector.


4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

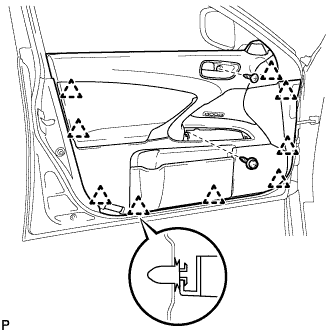

  1. B122644
    Remove the 2 screws.

  1. Using the clip remover, disengage the 9 clips.

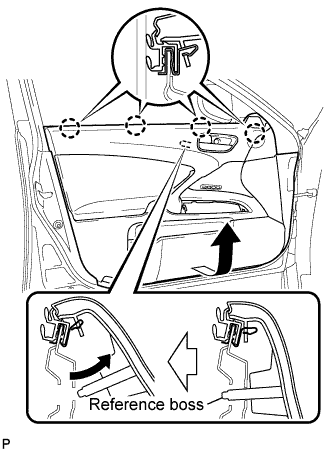

  1. B127038E01
    Pull out the front door trim board in the direction indicated by the arrow.

  1. Remove the reference bosses from the front door panel.

  1. Raise the front door trim board to disengage the 4 claws and remove the front door trim board together with the front door inner glass weatherstrip.

  1. B122646
    Disconnect the cables and each connector from the back side of the inside handle and remove the front door trim board sub-assembly.

  1. Remove the 2 front door trim board retainers (green) from the front door trim board.


5. REMOVE FRONT INNER DOOR GLASS WEATHERSTRIP

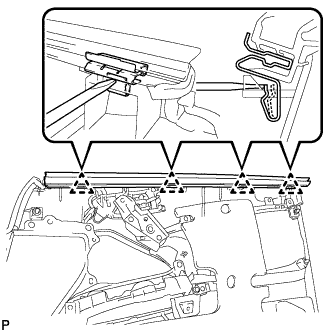

  1. B127040
    Disengage the 4 clips as shown in the illustration and remove the front door inner glass weatherstrip from the front door trim board.


6. REMOVE SEAT MEMORY SWITCH

  1. B126714
    Disconnect the connector.

  1. Remove the 2 screws and memory switch.
