PARTS LOCATION

Parts location

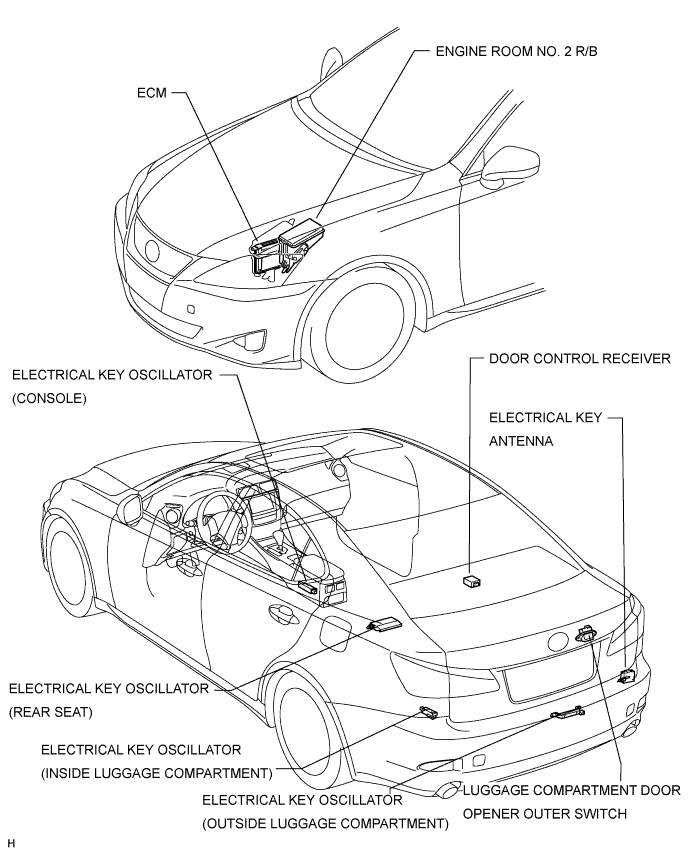

B112429E01

1 / 4

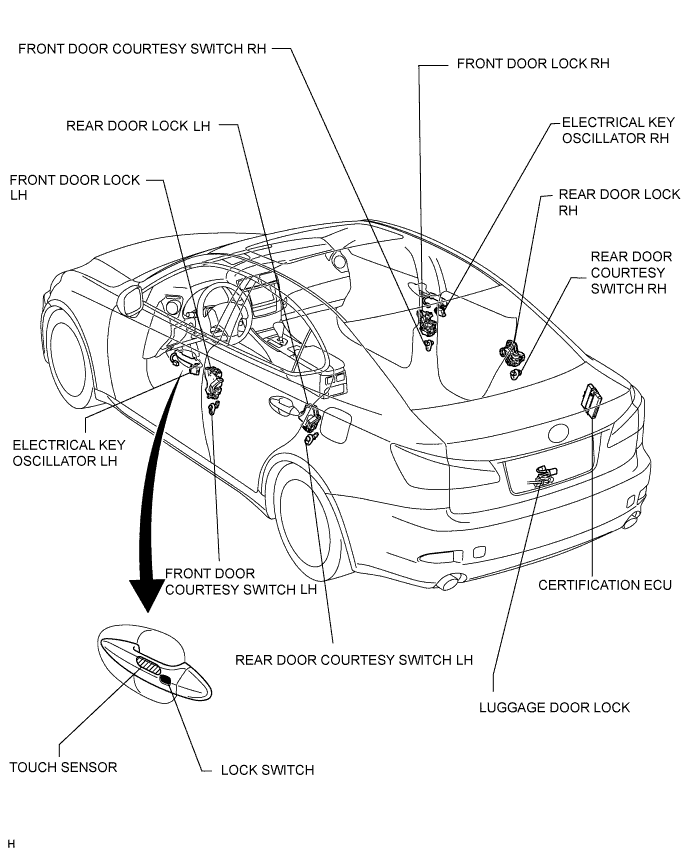

B112430E02

2 / 4

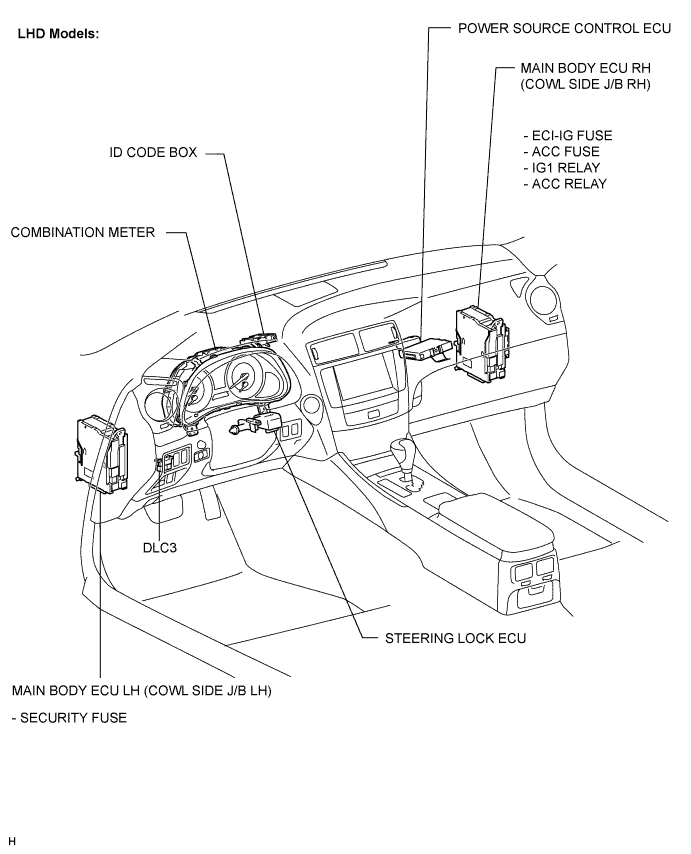

B112431E02

3 / 4

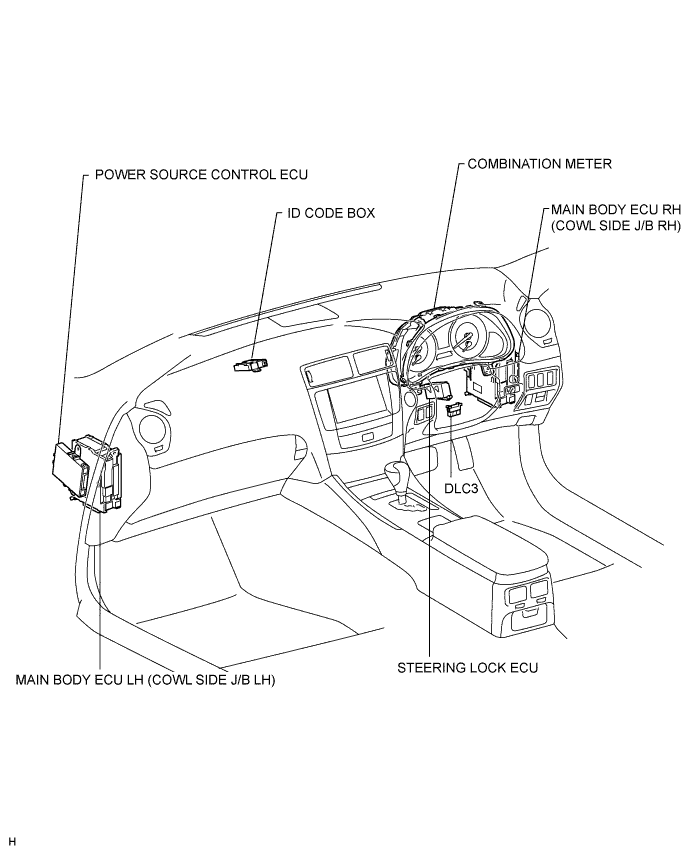

B112572E02

4 / 4
