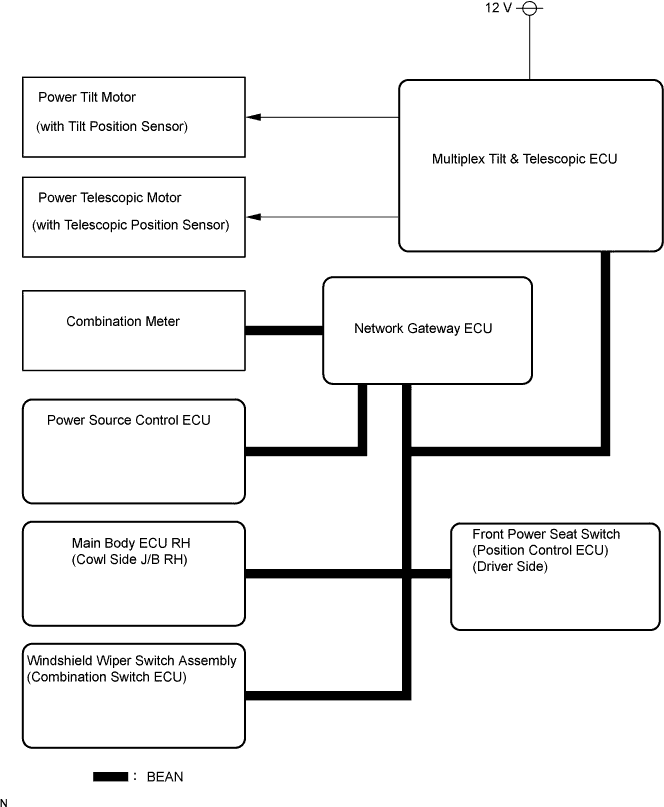

SYSTEM DIAGRAM
System information
| Transmitting ECU (Transmitter) |
Receiving ECU |
Signal |
Communication method |
| Combination Meter |
Multiplex Tilt & Telescopic ECU |
Vehicle speed signal |
BEAN |
| Main Body ECU RH (Cowl Side J/B RH) |
Multiplex Tilt & Telescopic ECU |
Engine switch signal |
BEAN |
| Main Body ECU RH (Cowl Side J/B RH) |
Multiplex Tilt & Telescopic ECU |
Diagnosis tool demand signal |
BEAN |
| Main Body ECU RH (Cowl Side J/B RH) |
Multiplex Tilt & Telescopic ECU |
DTC clear signal |
BEAN |
| Front Power Seat Switch (Position Control ECU) (Driver Side) |
Multiplex Tilt & Telescopic ECU |
Tilt & telescopic reproduction command signal |
BEAN |
| Front Power Seat Switch (Position Control ECU) (Driver Side) |
Multiplex Tilt & Telescopic ECU |
Memory signal (with driving position memory) |
BEAN |
| Windshield Wiper Switch Assembly (Combination Switch ECU) |
Multiplex Tilt & Telescopic ECU |
Tilt & telescopic manual switch signal |
BEAN |
| Power Source Control ECU |
Multiplex Tilt & Telescopic ECU |
Key code confirmation signal |
BEAN |
| Multiplex Tilt & Telescopic ECU |
Front Power Seat Switch (Position Control ECU) (Driver Side) |
Tilt & telescopic reproduction complete signal |
BEAN |
| Multiplex Tilt & Telescopic ECU |
Main Body ECU RH (Cowl Side J/B RH) |
Diagnosis tool answer signal |
BEAN |
