REMOVAL

Removal / installation


1. REMOVE NO. 2 LUGGAGE COMPARTMENT TRIM COVER

2. REMOVE SPARE WHEEL COVER

3. REMOVE DECK SIDE TRIM BOX LH

4. REMOVE DECK SIDE TRIM BOX RH

5. REMOVE ROPE HOOK ASSEMBLY

  1. B125612
    Remove the 3 bolts and 3 rope hook assemblies.


6. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER

  1. B125536
    Using a clip remover, remove the 3 clips.

  1. Disengage the 4 clips and remove the rear luggage compartment trim cover.


7. REMOVE NO. 2 ROOM LIGHT ASSEMBLY

  1. B125537
    Disengage the claw and disconnect the No. 2 room light assembly.

  1. Disconnect the connector and remove the No. 2 room light assembly.


8. REMOVE ROPE HOOK

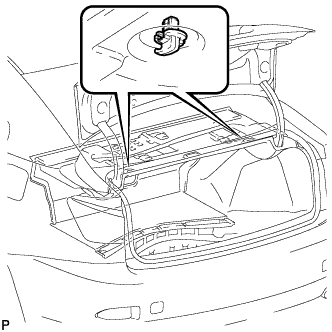

  1. B125538
    Remove the 2 rope hooks.


9. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER

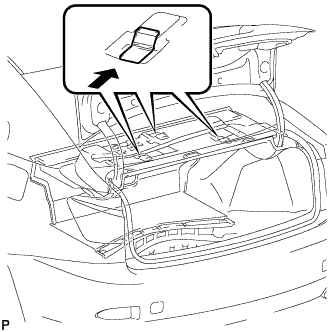

  1. B125539
    Remove the 3 luggage compartment trim hooks as shown in the illustration.

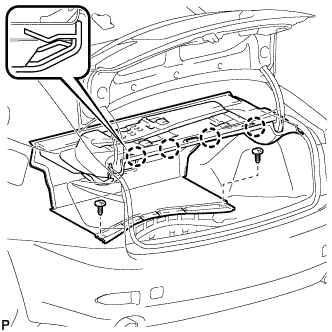

  1. B125540
    Using a clip remover, remove the 2 clips.

  1. Disengage the 4 claws and remove the front luggage compartment trim cover.


10. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

  1. B125541
    Remove the screw and No. 1 luggage compartment trim hook.


11. REMOVE SIDE LUGGAGE COMPARTMENT TRIM COVER

  1. B125542
    Using a clip remover, remove the 3 clips and side luggage compartment trim cover LH.


12. REMOVE FUEL LID OPENER MOTOR ASSEMBLY

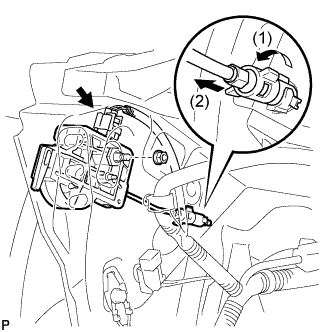

  1. B122570E01
    Disconnect the connector.

  1. Remove the lock and nut as shown in the illustration.

  1. Remove the fuel lid opener motor assembly.
