PARTS LOCATION

Parts location

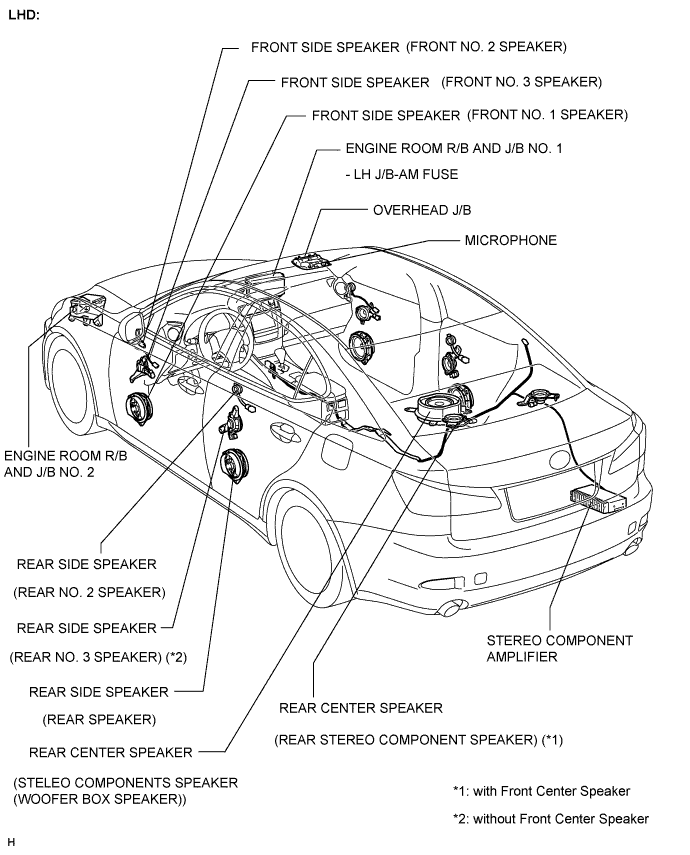

E124049E04

1 / 4

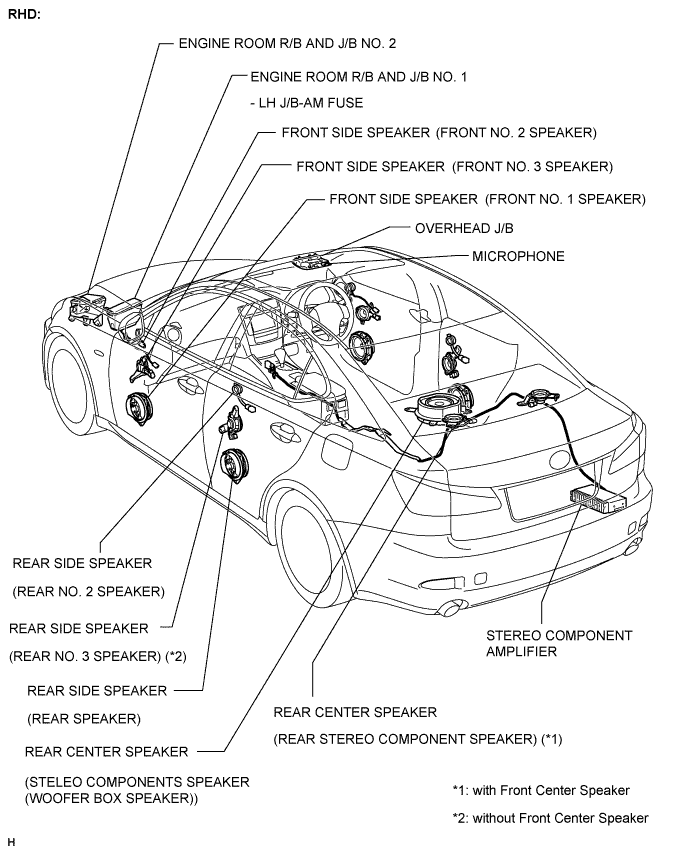

E124121E01

2 / 4

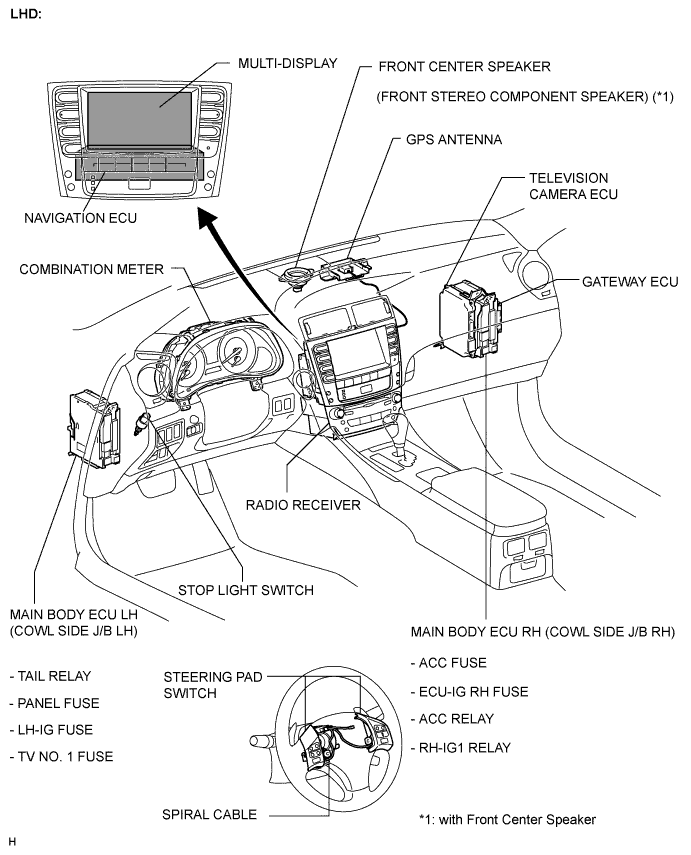

E125092E01

3 / 4

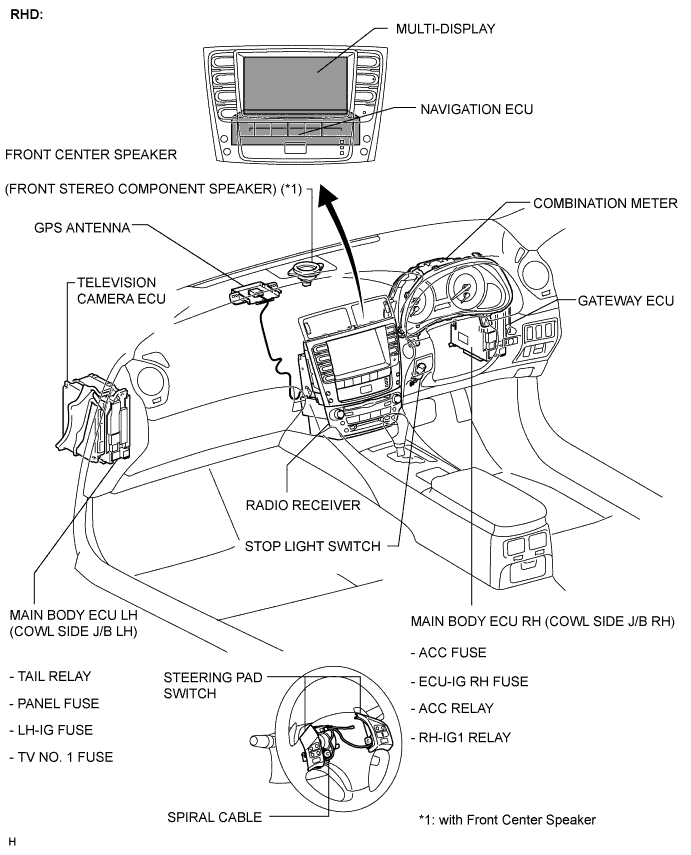

E124122E01

4 / 4
