Rear Door Lock Motor RH Circuit

DESCRIPTION

The rear right side door lock motor is built into the rear right side door lock assembly.
The main body ECU RH controls the rear right side door lock motor to lock/unlock the rear right side door. This ECU applies current from terminal ACT+ to terminal ACT- to operate the motor to lock the door. It reverses the direction of the current flow to operate the motor to unlock the door.

WIRING DIAGRAM

INSPECTION PROCEDURE

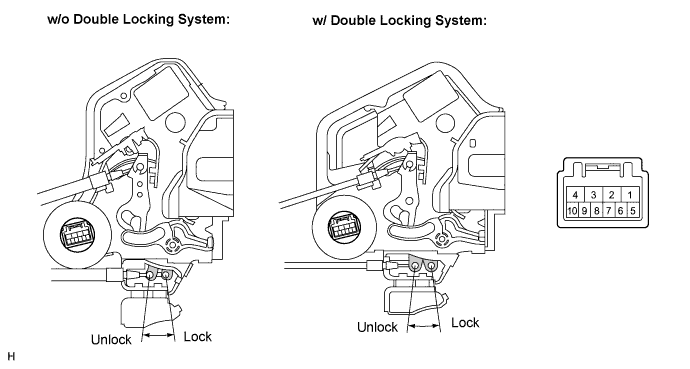

1. INSPECT REAR DOOR LOCK ASSEMBLY

1. Remove the rear lock assembly RH.


2. Apply battery voltage and check operation of the door lock motor.

   OK:

   Measurement Condition	Specified Condition
   Battery positive (+) → Terminal 4 Battery negative (-) → Terminal 3 (*1)	Lock
   Battery positive (+) → Terminal 3 Battery negative (-) → Terminal 4 (*1)	Unlock
   Battery positive (+) → Terminal 4 Battery negative (-) → Terminal 1 (*2)	Lock
   Battery positive (+) → Terminal 1 Battery negative (-) → Terminal 4 (*2)	Unlock

   *1: w/ Double locking system*2: w/o Double locking system

NG	REPLACE REAR DOOR LOCK ASSEMBLY

OK

2. CHECK WIRE HARNESS (REAR DOOR LOCK ASSEMBLY - MAIN BODY ECU RH)

1. Disconnect the rear door lock assembly RH connector.

2. Disconnect the ECU (cowl side J/B RH) connector.

3. Measure the resistance according to the value(s) in the table below.

   Standard resistance:

   Tester Connection (Symbols)	Condition	Specified Condition
   M8-4 (L) - RJ-9	Always	Below 1 Ω
   M8-1 (UL) - RD-17 (*1)	Always	Below 1 Ω
   M8-3 (UL) - RD-17 (*2)	Always	Below 1 Ω
   RJ-9 - Body ground	Always	10 kΩ or higher
   RD-17 - Body ground	Always	10 kΩ or higher

   *1: w/ Double locking system*2: w/o Double locking system

NG	REPAIR OR REPLACE HARNESS OR CONNECTOR

OK
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
