Lexus IS250 · Service Manual TRANSMISSION

REMOVAL

Removal / installation


1. SEPARATE CLUTCH ACCUMULATOR ASSEMBLY

  1. C125930
    Remove the 3 bolts and separate the clutch accumulator assembly.


2. DISCONNECT CLUTCH LINE

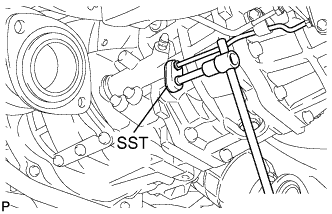

  1. C116467E01
    Using SST, disconnect the clutch line.
    SST
    09023-00101

    HINT:
    Use a container to catch the fluid.


3. REMOVE CLUTCH RELEASE CYLINDER ASSEMBLY

C125925

  1. Remove the 2 bolts and clutch release cylinder.
