Lexus IS250 · Service Manual STEERING

B2602

Diagnostic trouble codes

DESCRIPTION

A key code confirmation signal (ON or OFF) is sent from the power source control ECU to the multiplex tilt & telescopic ECU via the communication bus.
The multiplex tilt & telescopic ECU uses this signal to operate the auto away/return function.
DTC No.
 Detection Item
 Trouble Area
B2602
 Both of the following conditions continue:
  1. A key code confirmation signal is off
  1. The engine switch is on (IG)
  1. Multiplex communication system
  2. Entry and start system
  3. Multiplex tilt & telescopic ECU
B2606
 IG signals and/or key code confirmation signals are not received correctly.
  1. Multiplex communication system
  2. Entry and start system
  3. Multiplex tilt & telescopic ECU

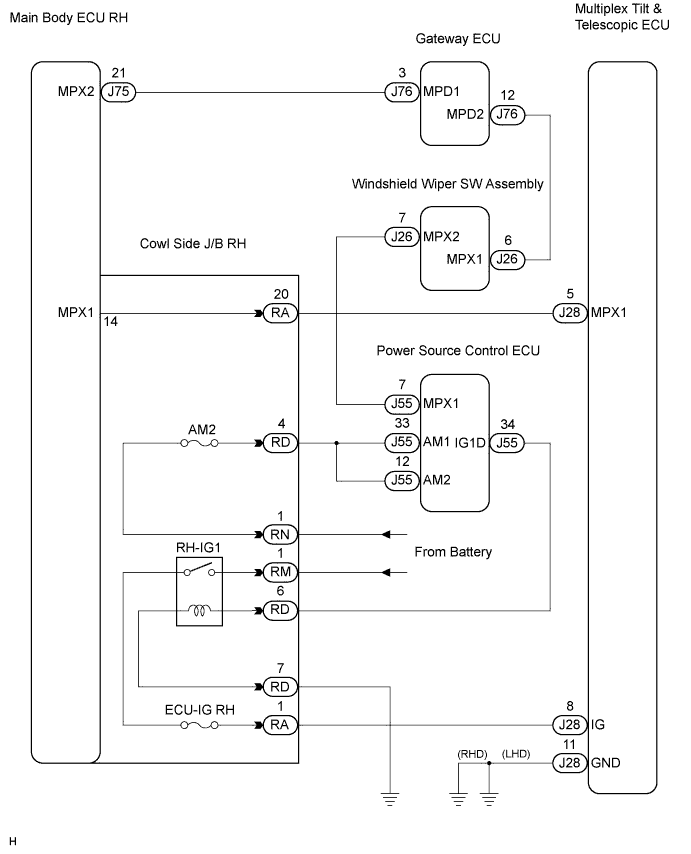

WIRING DIAGRAM

C113486E01

INSPECTION PROCEDURE


1. CHECK ANY OTHER DTCS OUTPUT

HINT:
The power tilt & power telescopic steering column system uses the multiplex communication system, so check its diagnostic system before proceeding to troubleshooting.

  1. Check if DTC B2621 is output.

    Result:
    DTC Condition
    		 Proceed to
    No output
    		 A
    B2621 is output
    		 B

    HINT:
    1. If DTC B2621 besides B2602 and B2606 are output, perform troubleshooting for B2621 first.
    2. DTC B2621 indicates a communication interruption for the power tilt & power telescopic steering column system.



 B
REPAIR CIRCUITS INDICATED BY OUTPUT DTCS
A


2. READ VALUE OF INTELLIGENT TESTER

  1. Connect the intelligent tester to the DLC3.

  1. Turn the engine switch on (IG) and turn the intelligent tester on.

  1. Select "Key Code Confirm (MPX)" and "IG Switch (MPX)" from the DATA LIST.

  1. Check the communication state of the tester screen.

    TILT & TELESCO:
    Item
    		 Measurement Item/Range (Display)
    		 Normal Condition
    Key Code Confirm (MPX)
    		 Communication state of key code confirmation signal / ON or OFF
    		 ON: Communication is normal
    OFF: Communication is interrupted
    IG Switch (MPX)
    		 Communication state of engine switch / ON or OFF
    		 ON: Communication is normal
    OFF: Communication is interrupted

    OK:
    "ON" is displayed.



 NG
CHECK ENTRY AND START SYSTEM
OK


3. RECONFIRM DTC

  1. Clear the DTC.

  1. Check for DTCs.

    OK:
    DTC B2602 and/or B2606 is not output.



 NG
REPLACE MULTIPLEX TILT & TELESCOPIC ECU
OK

END
