PARTS LOCATION

Parts location

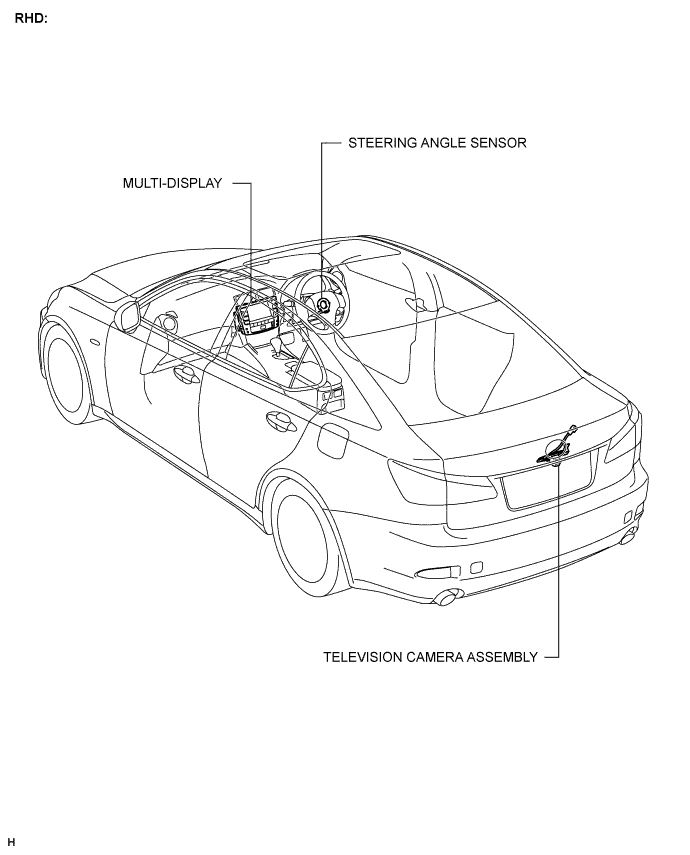

E125149E01

1 / 4

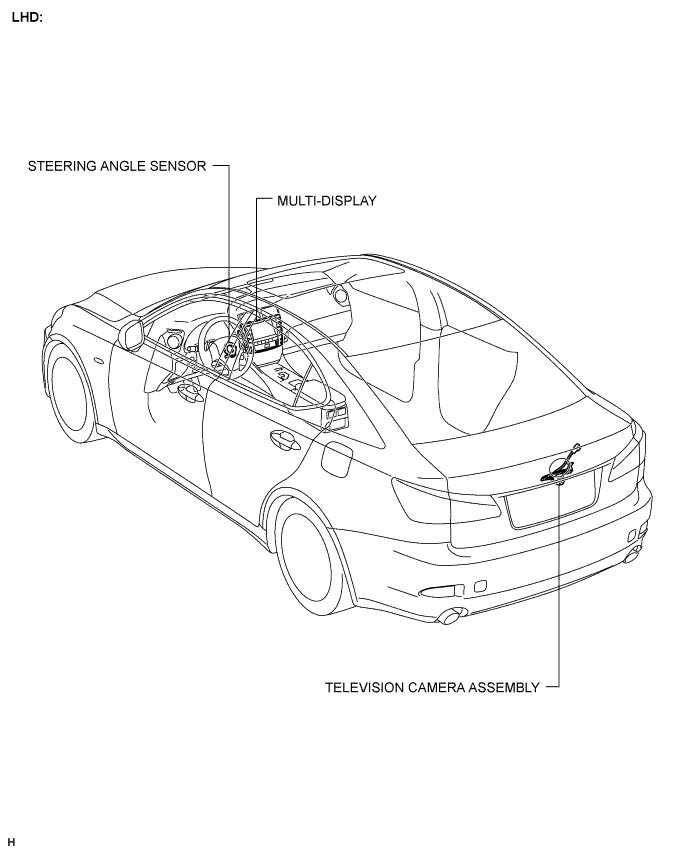

E125150E01

2 / 4

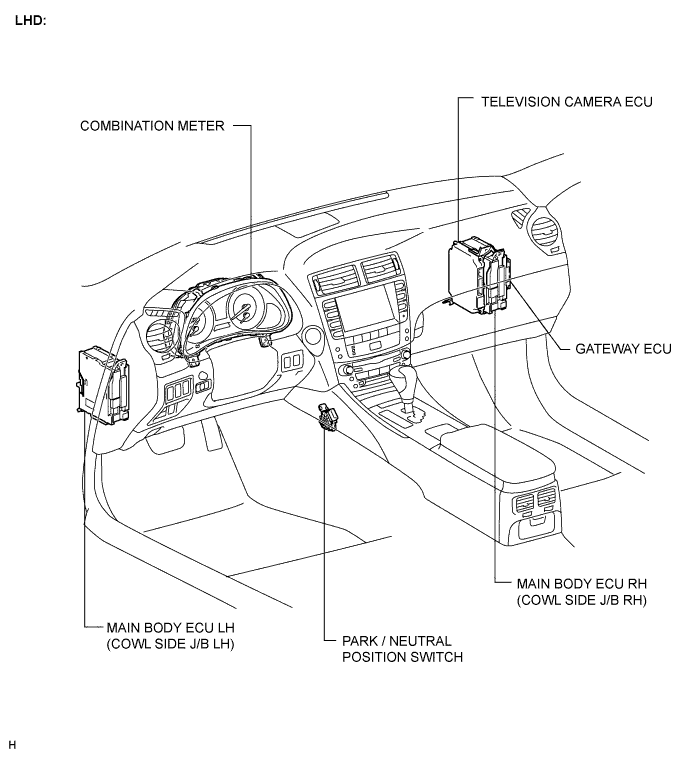

E125151E01

3 / 4

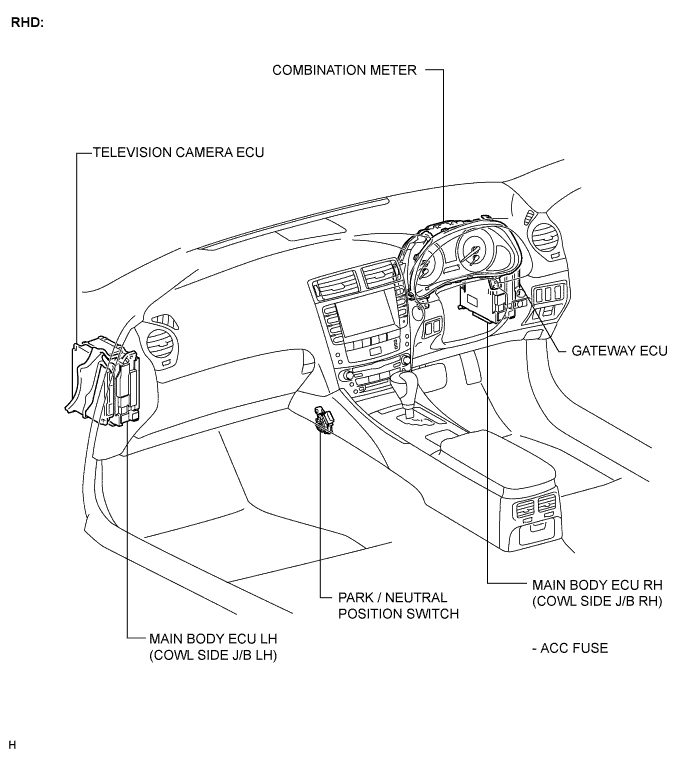

E125152E01

4 / 4
