Display Signal Circuit between Television Camera ECU and Multi-display

DESCRIPTION

This is the display signal circuit from the television camera ECU to the multi-display.

WIRING DIAGRAM

INSPECTION PROCEDURE

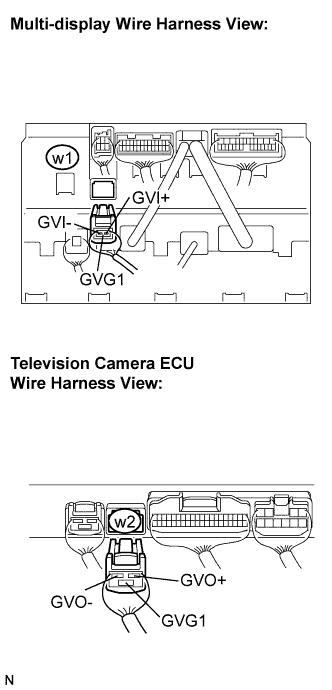

1. CHECK HARNESS AND CONNECTOR (TELEVISION CAMERA ECU - MULTI-DISPLAY)

1. Disconnect the multi-display connector w1 and television camera ECU connector w2.

2. Measure the resistance according to the value(s) in the table below.

   Standard resistance:

   Tester connection	Condition	Specified condition
   GVI+ - GVO+	Always	Below 1 Ω
   GVI- - GVO-	Always	Below 1 Ω
   GVG1 - GVG1	Always	Below 1 Ω
   GVIF- - Body ground	Always	10 kΩ or higher
   GVIF+ - Body ground	Always	10 kΩ or higher

NG	REPAIR OR REPLACE HARNESS OR CONNECTOR

OK
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
