INSTALLATION

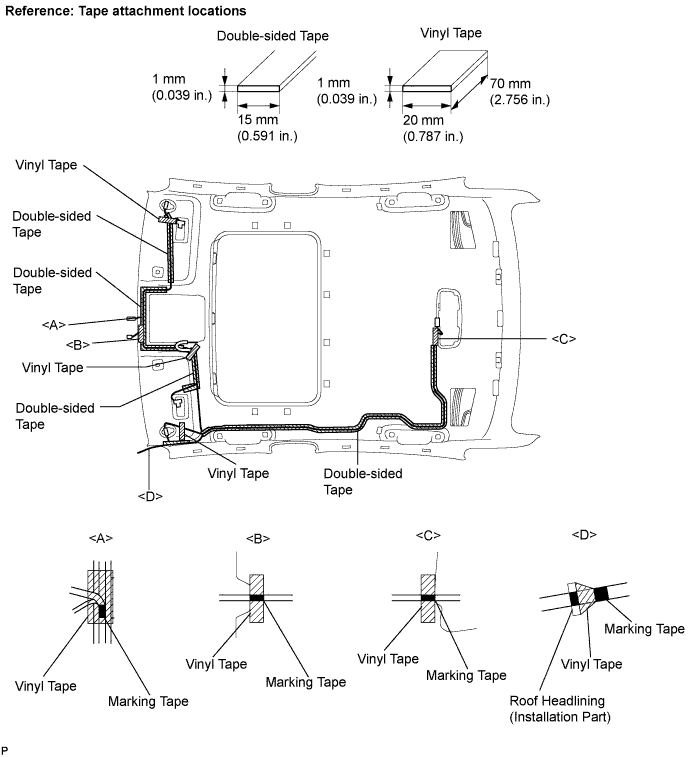

Install the roof wire.

1. Remove the peeling paper from one side of double-sided tape.


2. Attach double-sided tape to the marks on the roof headlining, as shown in the illustrations below above.


3. Remove peeling paper from the other side of double-sided tape.


4. Align the wire harness to double-sided tape. Also, align the marking tape areas of the wire harness to the marks on the roof headlining. Temporarily attach the wire harness to the roof headlining. Secure the wire harness to the roof headlining with vinyl tape.


   NOTICE:

   Securely install the No. 1 roof wire. If the wire is not secure, noise will occur.

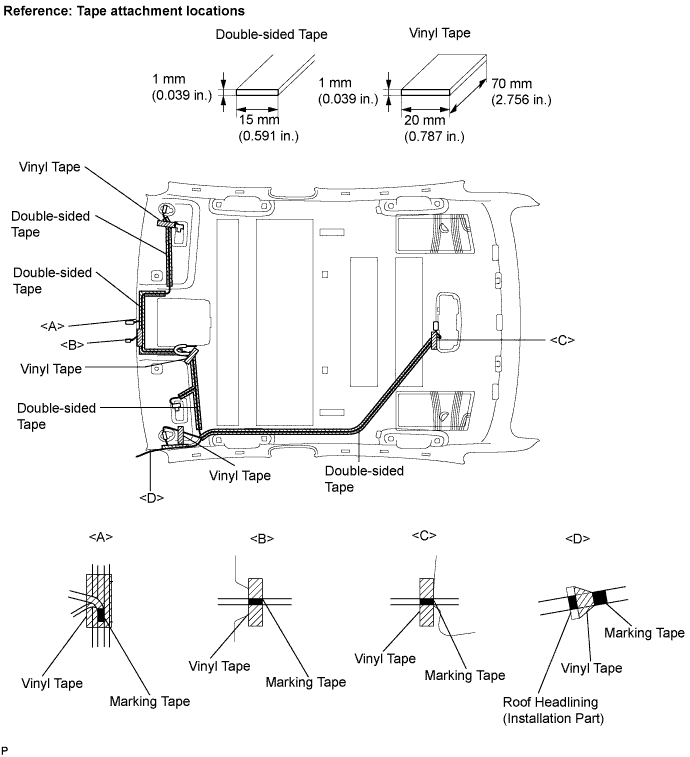

Install the roof wire.

1. Remove the peeling paper from one side of double-sided tape.


2. Attach double-sided tape to the marks on the roof headlining, as shown in the illustrations above.


3. Remove peeling paper from the other side of double-sided tape.


4. Align the wire harness to double-sided tape. Also, align the marking tape areas of the wire harness to the marks on the roof headlining. Temporarily attach the wire harness to the roof headlining. Secure the wire harness to the roof headlining with vinyl tape.


   NOTICE:

   Securely install the No. 1 roof wire. If the wire is not secure, noise will occur.

HINT:

Use the same procedure to install the light on the other side.

Connect each connector to the map light assembly.

Connect each connector to the map light assembly.

Engage the claws and install the visor holder.

HINT:

Use the same procedure to install the holder on the other side.

HINT:

Use the same procedure to install the cover on the other side.

Install the assist grip sub-assembly.

HINT:

Use the same procedure for the other 3 assist grips.

HINT:

Use the same procedure to install the hook on the other side.

Engage the 2 clips and install the spot light assembly.

Connect the connector.

Engage the 2 clips and install the map light assembly.

Install the 2 screws.

Engage the 3 claws and close the cover.

Connect the connector.

Engage the 2 clips and install the map light assembly.

Install the 2 screws.

Engage the 3 claws and close the cover.

Peel off the releasing sheet (white side).

NOTICE:

1. When reusing the rain sensor, clean up dirt on the sensor part with a cloth, etc.

2. Do not touch the sensor tape surface directly with fingers.


Connect the connector.

Gradually attach the rain sensor to the glass surface to prevent air bubbles from forming in between them.

NOTICE:

1. Do not touch the sensor tape surface and the glass surface directly with fingers.

2. Clean up dirt on the glass with a cloth, etc.

3. After installing the rain sensor, there should be no air bubbles between the windshield glass and the rain sensor tape.


Install the 2 screws.

Torque:

42 N*m{ 428 kgf*cm , 31 ft.*lbf }

HINT:

Use the same procedure to install the cover on the other side.

Torque:

8.3 N*m{ 85 kgf*cm , 73 in.*lbf }

Connect the connector to the floor shift assembly.

Torque:

13 N*m{ 133 kgf*cm , 9 ft.*lbf }

Torque:

5.4 N*m{ 55 kgf*cm , 48 in.*lbf }

Minimum length:

38.5 mm (1.516 in.)

NOTICE:

1. Be careful with the installation direction of the gasket.


1. Do not reuse the gasket.


1. To ensure a proper seal, do not use the tail exhaust pipe to force the gasket onto the front exhaust pipe.


   HINT:

   Using a plastic hammer, uniformly strike the gasket so that the gasket and front exhaust pipe are properly fit.

Install 3 new gaskets and front exhaust pipe assembly.

CAUTION:

Do not reuse the gaskets.

Torque:

43 N*m{ 438 kgf*cm , 32 ft.*lbf }

Torque:

62 N*m{ 632 kgf*cm , 46 ft.*lbf }

NOTICE:

Do not reuse the nuts.

SST

09224-00010

Torque:

44 N*m{ 449 kgf*cm , 33 ft.*lbf }

After installing the sensors, check that the sensor wires are not twisted.
If the sensor wires are twisted, reinstall them.

Torque:

7.4 N*m{ 75 kgf*cm , 65 in.*lbf }

Torque:

19 N*m{ 194 kgf*cm , 14 ft.*lbf }

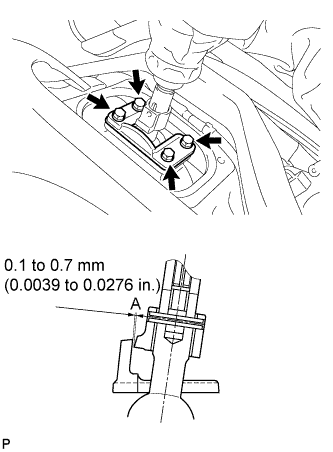

Install the washer to the floor shift lever assembly.

Install the shift and select lever boot.

Torque:

10 N*m{ 102 kgf*cm , 7 ft.*lbf }

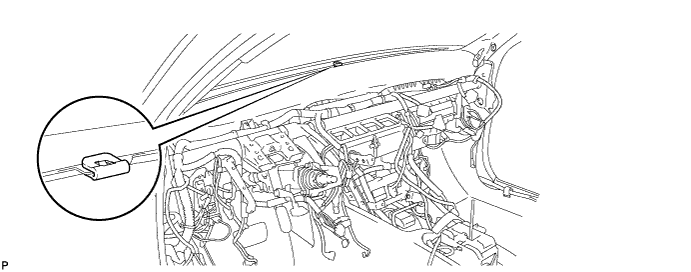

Engage the claw and install the instrument panel stay.

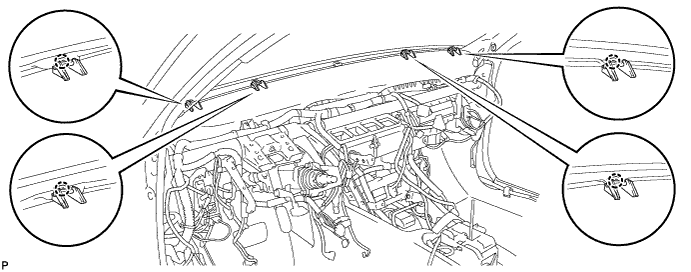

Engage the claw and install the 4 instrument panel clips.

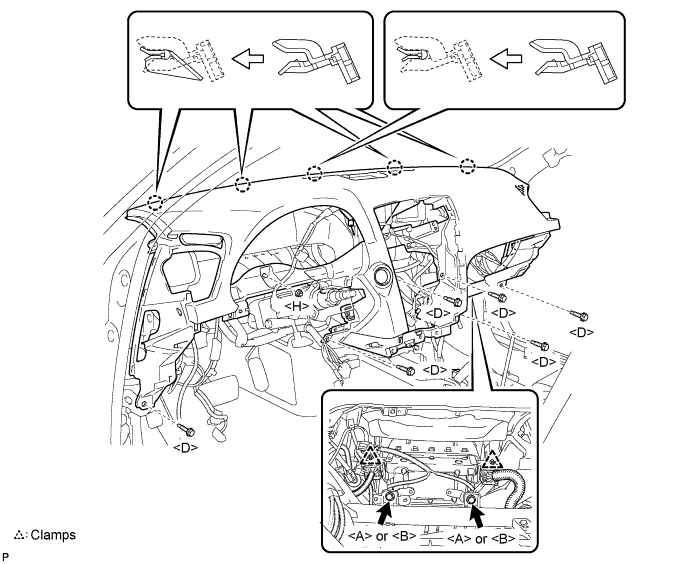

Engage the 5 claws.

NOTICE:

Do not allow the wire harness to get caught in the claws.

Engage the 2 clamps.

Install the 2 passenger airbag bolts <A> or <B>.

Torque:

20 N*m{ 204 kgf*cm , 15 ft.*lbf }

Install the 6 bolts <D> and nut <H>.

Engage the 2 claws and install the cooler thermistor.

Engage the clamps.

Connect the connectors and install the instrument panel safety pad assembly.

Connect the connector.

HINT:

Install the bolts in the order shown in the illustration.

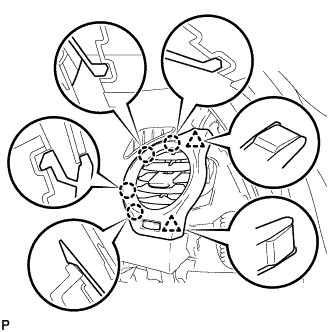

Engage the 4 claws and 2 clips, and install the No. 2 instrument panel register assembly.

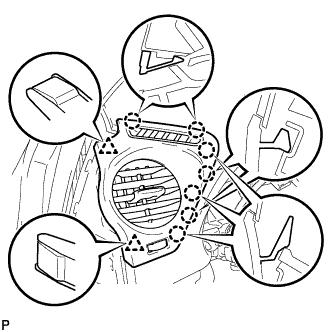

Engage the 7 claws and 2 clips, and install the No. 1 instrument panel register assembly.

Engage the 2 claws.

Install the glove compartment door assembly with the 5 screws.

NOTICE:

When handling the airbag connector, take care not to damage the airbag wire harness.

Install the front passenger side knee airbag assembly with the 3 bolts.

Torque:

10 N*m{ 102 kgf*cm , 7 ft.*lbf }

Engage the 2 claws and install the combination meter assembly.

NOTICE:

When handling the airbag connector, take care not to damage the airbag wire harness.

Install the driver side knee airbag assembly with the 4 bolts.

Torque:

10 N*m{ 102 kgf*cm , 7 ft.*lbf }

Engage the 7 clips and install the lower instrument panel finish panel sub-assembly.

Insert the No. 1 instrument panel under cover sub-assembly into the guide as shown in the illustration.

Engage the 2 claws.

Install the No. 1 instrument panel under cover sub-assembly with the 2 screws <E>.

Engage the claw and 2 clips, and install the front pillar garnish LH.

Connect the connector.

Engage the 4 clips to install the steering column cover upper onto the instrument panel cluster finish panel.

Install the 2 screws.

Torque:

2.0 N*m{ 20 kgf*cm , 18 in.*lbf }

Engage the 4 clips to install the steering column cover upper onto the instrument panel cluster finish panel.

NOTICE:

Do not damage the tilt and telescopic switch.

Install the 3 screws.

Torque:

2.0 N*m{ 20 kgf*cm , 18 in.*lbf }

Check that the engine switch is off.

Check that the battery negative (-) terminal is disconnected.

CAUTION:

After removing the terminal, wait for at least 90 seconds before starting the operation.

NOTICE:

Do not turn the spiral cable with steering sensor by the airbag wire harness.

NOTICE:

Do not turn the spiral cable with spiral sensor by the airbag wire harness.

HINT:

The spiral cable with steering sensor will rotate approximately 2.5 turns to both the left and right from the center.

Install the steering wheel assembly set nut.

Torque:

50 N*m{ 510 kgf*cm , 37 ft.*lbf }

Connect the 2 connectors to the steering pad.

NOTICE:

When handling the airbag connector, take care not to damage the airbag wire harness.

Connect the horn connector.

Confirm that the circumference groove of the "torx" screw fits in the screw case, and place the steering pad onto the steering wheel assembly.

Torque:

8.8 N*m{ 90 kgf*cm , 78 in.*lbf }

Connect each connector.

Connect each connector.

Engage the 11 claws and install the No. 3 instrument panel register assembly.

Connect the connector.

Engage the 2 clamps.

Install the 2 bolts <C>.

Install the rear ash receptacle assembly.

Insert the protruding parts of the front ash receptacle sub-assembly into the 2 guide holes as shown in the illustration.

Engage the 8 clips and install the console panel sub-assembly.

Place the seat in the cabin.

Connect the connectors under the seat.

Connect the cable to the negative (-) battery terminal.

Operate the power seat switch knob and move the seat to the position farthest forward.

Torque:

37 N*m{ 377 kgf*cm , 27 ft.*lbf }

HINT:

Tighten the 2 bolts in the order indicated in the illustration.

Operate the power seat switch knob and move the seat to the rearmost position.

Torque:

37 N*m{ 377 kgf*cm , 27 ft.*lbf }

Place the front seat assembly in the vehicle and align the adjuster pin with the hole on the vehicle side.

NOTICE:

When installing the passenger side front seat assembly, be careful not to step on the yaw rate sensor mounted on the floor under the seat.

Connect the connector.

Move the front seat assembly to the rearmost position by operating the slide handle.

NOTICE:

Check that the seat is locked.

Move the front seat assembly fully forward by operating the slide handle.

NOTICE:

Check that the seat is locked.

Move the front seat assembly to the rearmost position by operating the slide handle.

NOTICE:

Check that the seat is locked.

Fully tighten the 2 bolts on the front seat track bracket in the order of the inner side bolt and then the outer side bolt.

Torque:

37 N*m{ 377 kgf*cm , 27 ft.*lbf }

Move the front seat assembly fully forward by operating the slide handle.

NOTICE:

Check that the seat is locked.

Fully tighten the 2 bolts on the rear seat track bracket in the order of the inner side bolt and then the outer side bolt.

Torque:

37 N*m{ 377 kgf*cm , 27 ft.*lbf }

NOTICE:

Be careful not to damage the vehicle body.

Install the seatback with the 4 bolts.

Torque:

18 N*m{ 184 kgf*cm , 13 ft.*lbf }

Pass the 3 seat belts through and close the cap of the 2 rear seat shoulder belt guides.

Install the floor anchor part with the bolt.

Attach the 2 front hooks of the seat cushion to the vehicle body.

Confirm that the seat cushion is firmly installed.

NOTICE:

When installing the seat cushion, make sure the seat belt buckle is not under the seat cushion.

Check the power seat operation.

Check the seat heater operation (with seat heater system).

1. Turn the engine switch on (IG).


2. Turn the seat heater switch ON.


3. Wait 5 minutes or more and confirm that the seat surface becomes warm.


Move the shift lever to the N position and tighten the nut while lightly pushing the lever toward the R position.

NOTICE:

Do not push the shift lever too hard.

After adjustment, check that the shift lever moves smoothly and the shift lever and gear operate correctly.

When shifting from the P to R position with the engine switch on (IG) and the brake pedal depressed, make sure that the shift lever moves smoothly and moves correctly into the position.

Start the engine and make sure that the vehicle moves forward when shifting from the N to D position and moves rearward when shifting to the R position.
If operation cannot be done as specified, inspect the park/neutral position switch assembly and check the shift lever assembly installation condition.
