DTC CHECK / CLEAR

Start the engine and warm it up.

Perform the indicator check (Click here).

HINT:

After the indicator check is completed, the system enters the DTC check mode automatically.

Push the "R/F (Recirculation/Fresh)" switch to perform the actuator check.

NOTICE:

1. In the sensor check mode, which is automatically transferred from the indicator check mode, troubleshooting may be partially performed. Be sure to perform the actuator check, and then the sensor check again.

2. If the check is performed in a dark place, DTC 21 may be displayed.


HINT:

When there are no problems, DTC 00 is output.

If the steps are difficult to read because they change automatically, push the "UpDr" switch to display the steps one at a time so that they can be read easily. The items are displayed step by step each time the "UpDr" switch is pushed.

Read the code displayed on the panel. (Trouble codes are output on the temperature display.)

HINT:

Refer to the DTC chart (Diagnostic Trouble Code chart) for details of the codes (Click here).

1. As an example, the illumination shows that display code 21 is output.

2. Push the "OFF" switch to finish panel diagnosis.

3. Push the "R/F" switch to enter the actuator check mode.

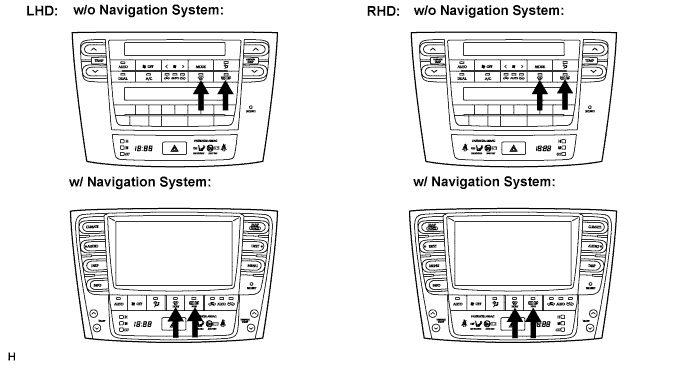

During the sensor check, press the "FRONT DEF" switch and "REAR DEF" switch at the same time.

Turn the engine switch on (IG).

Turn the tester ON.

Enter the following menu items: Body / Air Conditioner / DTC.

HINT:

Refer to the intelligent tester operator's manual for further details.

Check the details of the DTCs.

Clear the DTCs.

HINT:

After repairing the malfunctions, clear the DTC.

1. Connect the intelligent tester to the DLC3.


2. Turn the engine switch on (IG).


3. Enter the following menu items: Body / Air Conditioner / DTC / Clear.


   HINT:

   Refer to the intelligent tester operator's manual for further details.
