REASSEMBLY

Removal / installation


1. INSTALL LICENSE PLATE LIGHT ASSEMBLY LH

  1. E120542
    Install the license plate light assembly with the 2 claws.

  1. Connect the connector.


2. INSTALL LICENSE PLATE LIGHT ASSEMBLY RH

3. INSTALL LUGGAGE COMPARTMENT OUTSIDE DOOR GARNISH SUB-ASSEMBLY

4. INSTALL REAR LIGHT ASSEMBLY LH

  1. E120538
    Install the rear light assembly with the 3 nuts.

  1. Connect the connector.


5. INSTALL REAR LIGHT ASSEMBLY RH

6. INSTALL TELEVISION CAMERA ASSEMBLY (w/ Parking Assist Monitor System)

  1. E117935E01
    Engage the 2 claws to temporarily install the television camera assembly from to the luggage compartment as shown in the illustration.

  1. E125310E01
    Install the television camera assembly with the 2 screws.

  1. Connect the television camera connector.

  1. Engage the television camera connector clamp.


7. INSTALL LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

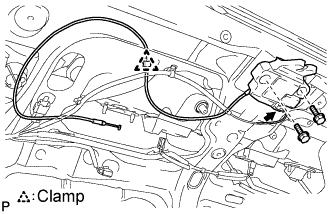

  1. B129223E01
    Install the luggage compartment door lock assembly with the 2 bolts.

    Torque:
    5.5 N*m{ 56 kgf*cm , 49 in.*lbf }

  1. Engage the clamp.

  1. Connect the connector.


8. INSTALL LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY

  1. B127044E01
    Connect the luggage compartment door lock control cable.

  1. Install the luggage compartment door lock cylinder with the nut.

    Torque:
    5.5 N*m{ 56 kgf*cm , 49 in.*lbf }

  1. Connect the connector and clamp.


9. INSTALL LUGGAGE KEY ELECTRICAL SWITCH

10. INSTALL LUGGAGE COMPARTMENT DOOR REINFORCEMENT

11. INSTALL LUGGAGE COMPARTMENT DOOR COVER

12. INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP
