INSTALLATION

Removal / installation


1. INSTALL LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

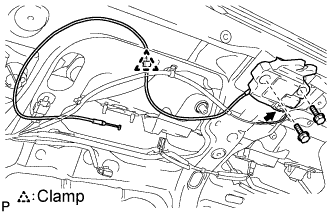

  1. B129223E01
    Install the luggage compartment door lock assembly with the 2 bolts.

    Torque:
    5.5 N*m{ 56 kgf*cm , 49 in.*lbf }

  1. Engage the clamp.

  1. Connect the connector.


2. INSTALL LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY

  1. B127044E01
    Connect the luggage compartment door lock control cable.

  1. Install the luggage compartment door lock cylinder with the nut.

    Torque:
    5.5 N*m{ 56 kgf*cm , 49 in.*lbf }

  1. Connect the connector and clamp.


3. INSTALL LUGGAGE COMPARTMENT DOOR REINFORCEMENT

4. INSTALL LUGGAGE COMPARTMENT DOOR COVER

5. INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP
