INSTALLATION

Removal / installation


1. INSTALL SEAT BELT CONTROL ECU

  1. B126059E01
    Install the clearance warning ECU to the seat belt control ECU with the 2 nuts.

    Torque:
    5.5 N*m{ 56 kgf*cm , 49 in.*lbf }

  1. Temporarily install the nut A.

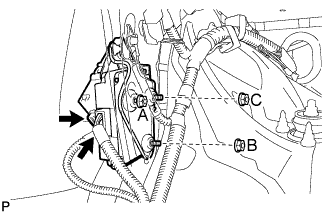

  1. B126060E01
    Insert loosely tightened nut A into the hole on the vehicle body (left side of the luggage compartment). Slide down the seat belt control ECU and the clearance warning ECU as a unit to temporarily install them.

  1. Insert the 2 bolts into the holes on the vehicle body and fully tighten the 3 nuts in the order of B, A, and C.

    Torque:
    5.5 N*m{ 56 kgf*cm , 49 in.*lbf }

  1. Connect the connectors.


2. INSTALL SIDE LUGGAGE COMPARTMENT TRIM COVER LH

3. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

4. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER

5. INSTALL ROPE HOOK

6. INSTALL NO. 2 ROOM LIGHT ASSEMBLY

7. INSTALL REAR LUGGAGE COMPARTMENT TRIM COVER

8. INSTALL ROPE HOOK ASSEMBLY

9. INSTALL DECK SIDE TRIM BOX RH

10. INSTALL DECK SIDE TRIM BOX LH

11. INSTALL SPARE WHEEL COVER

12. INSTALL NO. 2 LUGGAGE COMPARTMENT TRIM COVER
