Lexus IS250 · Service Manual BODY

REMOVAL

Removal / installation


1. REMOVE NO. 2 REAR FLOOR HOUSING SHIELD

  1. B125570
    Using a clip remover, remove the 2 clips.

  1. Remove the screw and No. 2 rear floor housing shield.


2. REMOVE NO. 2 FRONT DOOR WEATHERSTRIP

  1. B125571
    Fully open the front door and rear door.

  1. Disengage the 13 clips and remove the No. 2 front door weatherstrip.


3. REMOVE ROCKER PANEL MOULDING ASSEMBLY

  1. B125572
    Remove the screw.

  1. B125573
    Remove the screw.

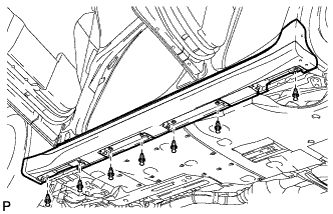

  1. B125574
    Using a clip remover, remove the 7 clips.

  1. B125575
    Remove the 2 screws.

  1. B125576
    Disengage the 11 clips and remove the rocker panel moulding assembly.
