INSTALLATION

Removal / installation


1. INSTALL HEADLIGHT SWIVEL ECU ASSEMBLY

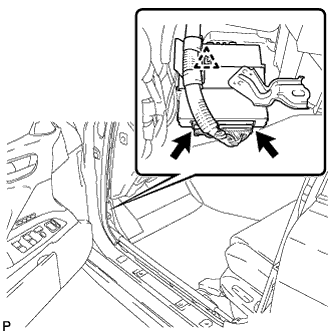

  1. E120549
    Install the clamp.

  1. Connect the connector.

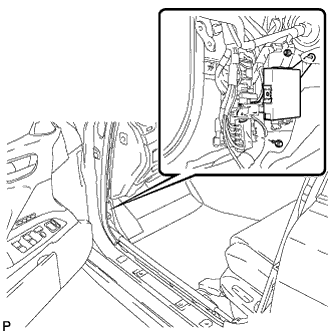

  1. E120548
    Install the headlight swivel ECU assembly with the bolt and nut.

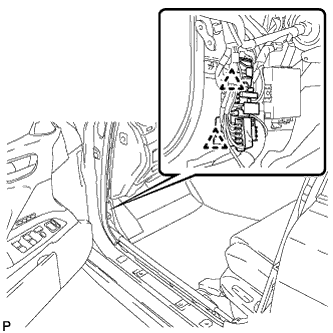

  1. E120547
    Install the connector holder with the 2 clips.


2. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

  1. B123383E01
    Connect the connectors.

  1. Insert the No. 1 instrument panel under cover sub-assembly into the guide as shown in the illustration.

  1. Engage the 2 claws.

  1. Install the No. 1 instrument panel under cover sub-assembly with the 2 screws <E>.


3. INSTALL FRONT DOOR OPENING TRIM COVER LH

  1. B123347
    Engage the 6 claws and install the front door opening trim cover LH.


4. INSTALL FRONT DOOR SCUFF PLATE LH (w/o Illumination)

  1. B125406
    Engage the 4 clips.

  1. B125382
    Engage the 7 claws, and install the front door scuff plate LH.


5. INSTALL FRONT DOOR SCUFF PLATE LH (w/ Illumination)

  1. Connect the connector.

  1. B125406
    Engage the 4 clips.

  1. B125382
    Engage the 7 claws, and install the front door scuff plate LH.
