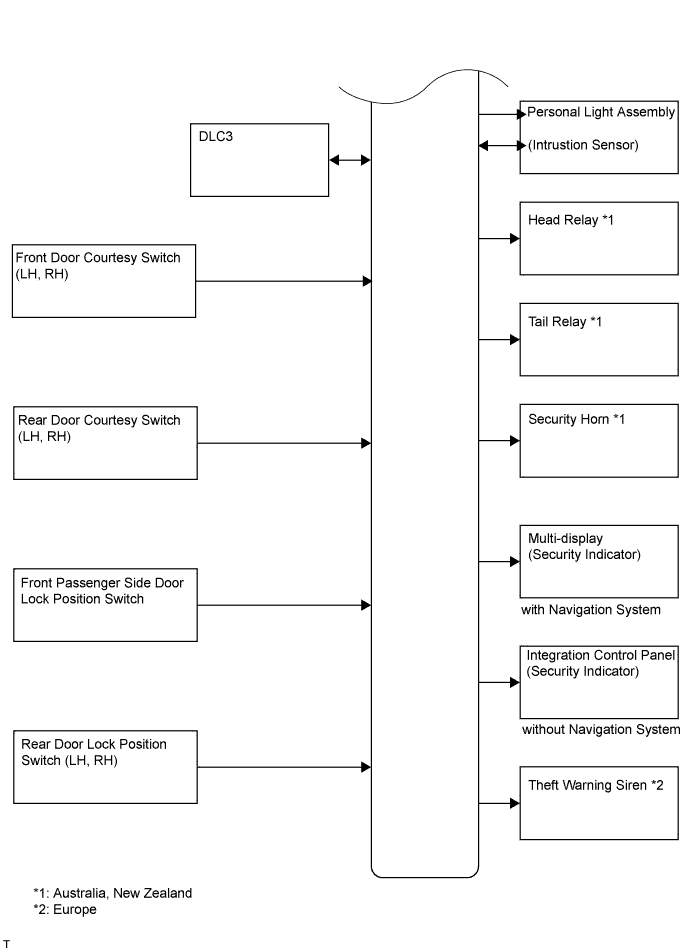

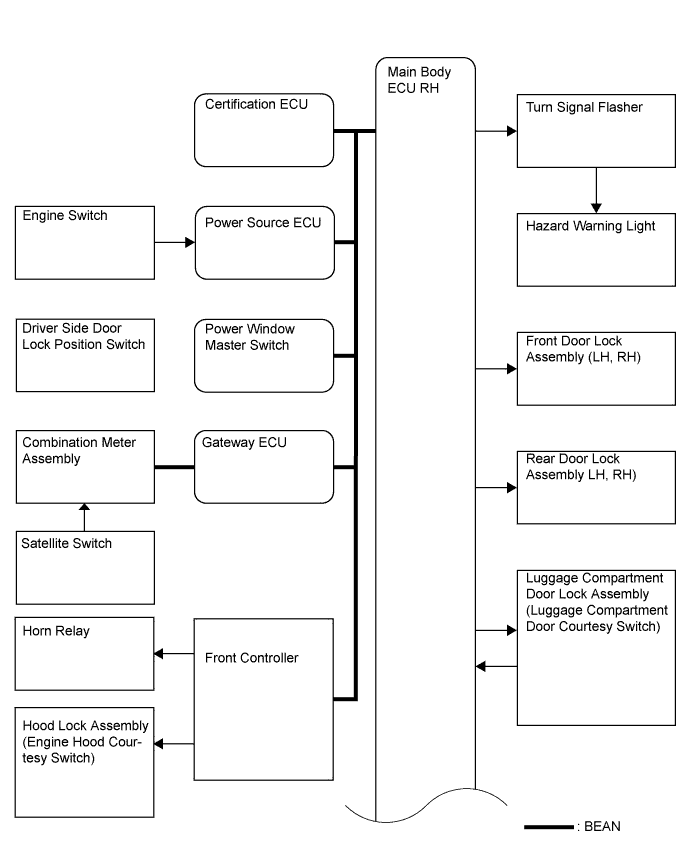

SYSTEM DIAGRAM
System information
| Transmitting ECU (Transmitter) |
Receiving ECU (Receiver) |
Signal |
Line |
| Certification ECU |
Main body ECU RH |
IG relay operating states |
BEAN |
| Power source ECU |
Main body ECU RH |
Engine switch signal |
BEAN |
| Power window master switch |
Main body ECU RH |
Front door lock signal |
BEAN |
| Front controller |
Main body ECU RH |
Engine hood courtesy signal |
BEAN |
| Combination Meter Assembly |
Main body ECU RH |
Intrusion sensor ON/OFF request |
BEAN |
| Main body ECU RH |
Front controller |
Vehicle horn sound request |
BEAN |
