Lexus IS250 · Service Manual BRAKE

REMOVAL

Removal / installation


1. PRECAUTION

CAUTION:
Be sure to read the "PRECAUTION" thoroughly before servicing (Click here).


2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait for 90 seconds after disconnecting the cable to prevent the airbag working.


3. REMOVE SIDE INSTRUMENT PANEL LH

  1. B123348
    Using a moulding remover, disengage the 5 claws and 3 clips, and then remove the side instrument panel LH.


4. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

  1. B123349E01
    Remove the 2 screws <E>.

  1. Push the 2 claws in the direction indicated by the arrow to disengage them.

  1. Remove the No. 1 instrument panel under cover sub-assembly from the guide as shown in the illustration and pull the cover toward the rear of the vehicle.

  1. Disconnect the connectors and remove the No. 1 instrument panel under cover sub-assembly.


5. REMOVE LOWER INSTRUMENT FINISH PANEL SUB-ASSEMBLY

  1. B123350
    Disengage the 7 clips.

  1. Disconnect the connectors and remove the lower instrument panel finish panel sub-assembly.


6. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY

  1. C122406
    Remove the 4 bolts and driver side knee airbag assembly.

  1. Disconnect the connector.

    NOTICE:
    When handling the airbag connector, take care not to damage the airbag wire harness.


7. REMOVE SKID CONTROL BUZZER ASSEMBLY

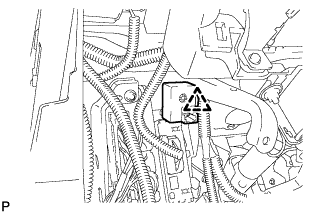

  1. C121747
    Remove the clip and skid control buzzer assembly.
