Title: 2UZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0617; Starter Relay Circuit High; 2006 MY LX470 [05/2005 - ] |
|
DTC
|
P0617
|
Starter Relay Circuit High
|
DESCRIPTION
HINT:
Refer to cranking holding function circuit
.
If the vehicle is being driven and the ECM detects the starter control signal (STA), the ECM concludes that the starter control circuit is malfunctioning. The ECM will turn on the MIL and a DTC is set.
|
DTC No.
|
DTC Detection Condition
|
Trouble Area
|
|
P0617
|
The following conditions are met for 20 seconds:
-
Vehicle speed is greater than 20 km/h (12 mph)
-
Engine RPM is greater than 1,000 rpm
-
ECM detects STA
|
-
Short in Park/Neutral Position (PNP) switch circuit
-
Park/Neutral Position (PNP) switch
-
Ignition switch
-
ECM
|
MONITOR STRATEGY
|
Related DTCs
|
P0617: Starter signal
|
|
Required Sensors/Components (Main)
|
STARTER relay, PNP switch, Ignition switch
|
|
Required Sensors/Components (Related)
|
Vehicle speed sensor, Crankshaft position sensor
|
|
Frequency of Operation
|
Continuous
|
|
Duration
|
20 seconds
|
|
MIL Operation
|
Immediate
|
|
Sequence of Operation
|
None
|
TYPICAL ENABLING CONDITIONS
|
Monitor runs whenever these DTCs are not present
|
None
|
|
Battery voltage
|
10.5 V or more
|
|
Vehicle speed
|
20 km/h (12.5 mph) or more
|
|
Engine rpm
|
1,000 rpm or more
|
TYPICAL MALFUNCTION THRESHOLDS

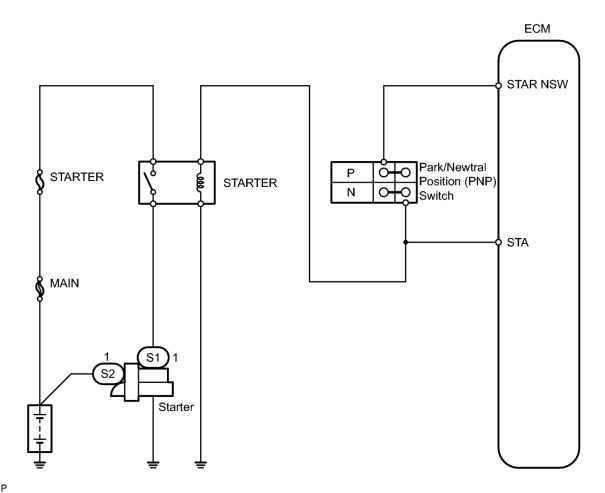

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1.
|
READ VALUE USING INTELLIGENT TESTER (STARTER SIGNAL)
|
(a) Connect the intelligent tester to the CAN VIM. Then connect the CAN VIM to the DLC3.
(b) Turn the ignition switch ON and turn the intelligent tester ON.
(c) Enter the following menus: DIAGNOSIS / ENHANCED OBD II / DATA LIST / PRIMARY / STARTER SIG.
(d) Confirm the starter signal status when the ignition switch is operated.
OK:
|
Ignition Switch Position
|
STARTER SIG
|
|
ON
|
OFF
|
|
Start
|
ON
|
| NG |
|
|
|
2.
|
INSPECT PARK / NEUTRAL POSITION SWITCH
|
|
(a) Move the shift lever to the P or N position.
(b) Disconnect the P1 Park/Neutral Position (PNP) switch connector.
(c) Measure the resistance of the PNP switch.
Standard resistance:
|
Shift Position
|
Tester Connection
|
Specified Condition
|
|
P or N
|
4 - 5
|
Below 1 Ω
|
|
|
| NG |
|
REPLACE PARK / NEUTRAL POSITION SWITCH (GO TO STEP 5 AFTER THE REPLACEMENT)
|
| OK |
|
|
|
3.
|
INSPECT IGNITION SWITCH ASSEMBLY
|
|
(a) Disconnect the I18 ignition switch connector.
(b) Measure the resistance between the connector terminals shown in the chart below.
Standard resistance:
|
Switch Position
|
Tester Connection
|
Specified Condition
|
|
START
|
7 - 8
|
Below 1 Ω
|
|
|
| NG |
|
REPLACE IGNITION SWITCH ASSEMBLY (GO TO STEP 5 AFTER THE REPLACEMENT)
|
| OK |
|
|
|
4.
|
READ VALUE USING INTELLIGENT TESTER (STARTER SIGNAL)
|
(a) Connect the intelligent tester to the CAN VIM. Then connect the CAN VIM to the DLC3.
(b) Turn the ignition switch ON and turn the tester ON.
(c) On the intelligent tester, enter the following menus: DIAGNOSIS / ENHANCED OBD II / DATA LIST / ALL / STARTER SIG.
(d) Read the values.
|
Ignition Switch Position
|
STARTER SIG
|
|
ON
|
OFF
|
|
START
|
ON
|
| NG |
|
REPAIR OR REPLACE HARNESS OR CONNECTOR
|
| OK |
|
|
|
5.
|
CHECK IF DTC OUTPUT REOCCURS
|
(a) Connect the intelligent tester to the CAN VIM. Then connect the CAN VIM to the DLC3.
(b) Turn the ignition switch ON and turn the tester ON.
(c) To erase DTC, enter the following menus: DIAGNOSIS / ENHANCED OBD II / DTC INFO / CLEAR CODE; and press YES.
(d) Drive the vehicle more than 40 km/h (25 mph) for 20 seconds or more.
(e) Check if DTC output reoccurs.
|
Display (DTC output)
|
Proceed to
|
|
P0617
|
A
|
|
No output
|
B
|
| B |
|
CHECK FOR INTERMITTENT PROBLEMS
|
|
