MANUAL SHIFTING TEST
1. MANUAL SHIFTING TEST
HINT:
- Through this test, it can be determined whether the trouble occurs in the electrical circuit or if it is a mechanical problem in the transmission.
- If any abnormalities are found in the following test, the problem is in the transmission itself.
|

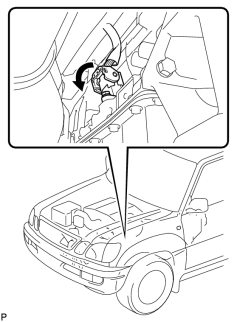

(a) Disconnect the connector of the transmission wire. HINT: It is possible to deactivate the electrical shift control by disconnecting the transmission wire. The gear positions can then be changed mechanically with the shift lever. |
|
(b) Drive with the transmission wire disconnected. Move the shift lever to each position to check whether the gear position changes as shown in the table below.
|
Shift Lever Position |
Gear Position |
|---|---|
|
D |
4th |
|
4 |
4th |
|
3 |
3rd |
|
2 |
1st |
|
L |
1st |
|
R |
R |
|
P |
P |
(c) Connect the connector of the transmission wire.
(d)
Clear the DTC
