| Last Modified: 4-30-2014 | 6.6 U | Doc ID: RM000000W7D00IX |
| Model Year: 2006 | Model: LX470 | Prod Date Range: [05/2005 - ] |
| Title: A750F AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION SYSTEM: SYSTEM DIAGRAM; 2006 MY LX470 [05/2005 - ] | ||
SYSTEM DIAGRAM

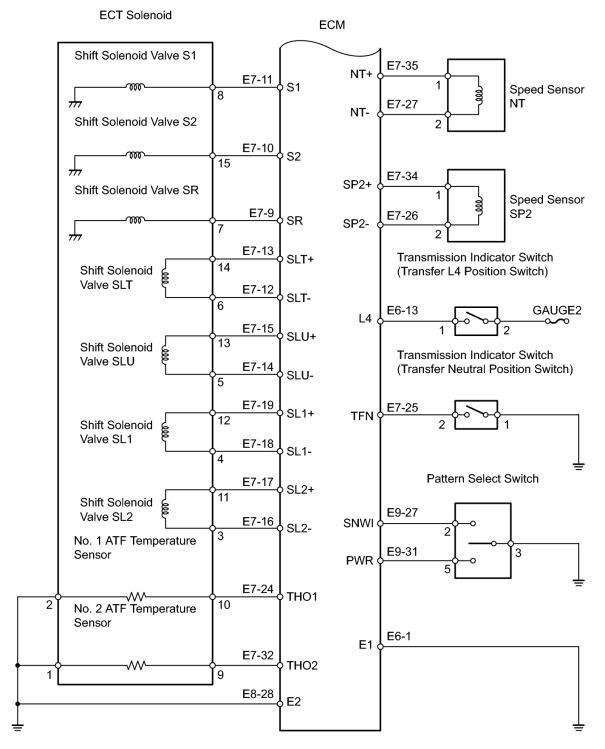

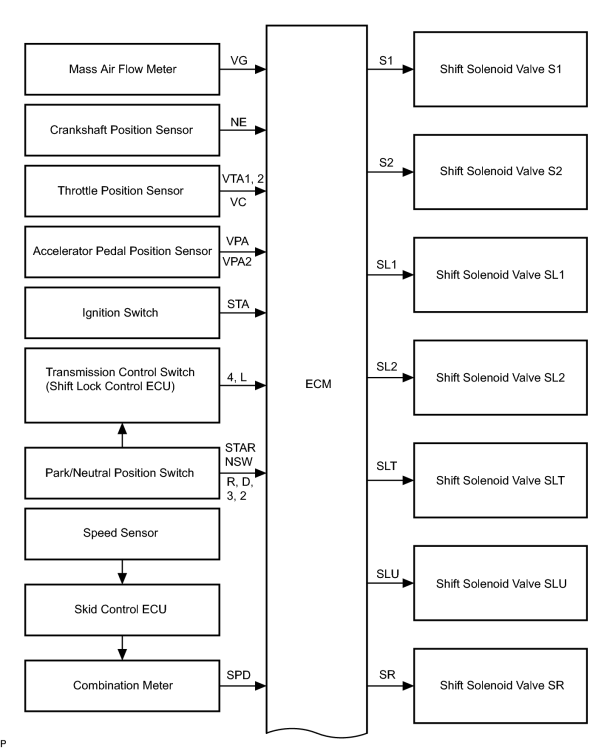

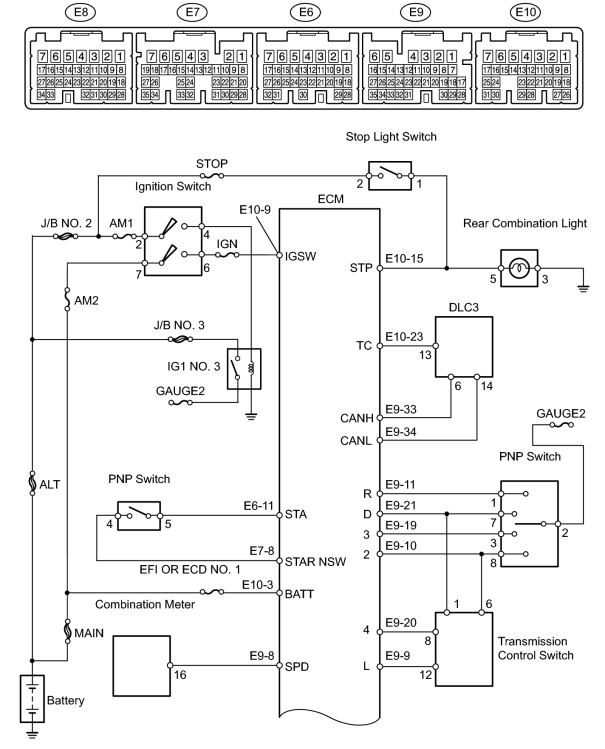

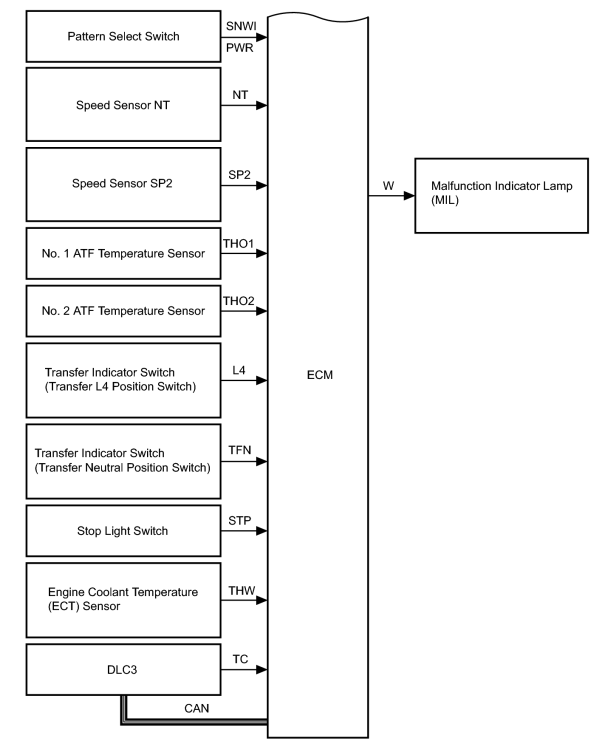

The configuration of the electronic control system in the A750F automatic transmission is as shown in the following chart.
|
|
