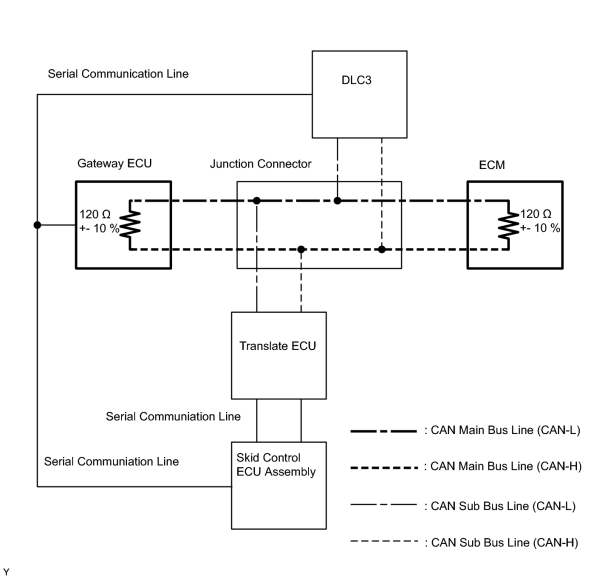

SYSTEM DIAGRAM
HINT:
The ECM uses the CAN communication system to perform DTC communication instead of the conventional communication line (SIL).
|
|
