| Last Modified: 4-30-2014 | 6.6 R | Doc ID: RM000000XF8006X |
| Model Year: 2006 | Model: LX470 | Prod Date Range: [05/2005 - 01/2006] |
| Title: SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: PARTS LOCATION; 2006 MY LX470 [05/2005 - 01/2006] | ||

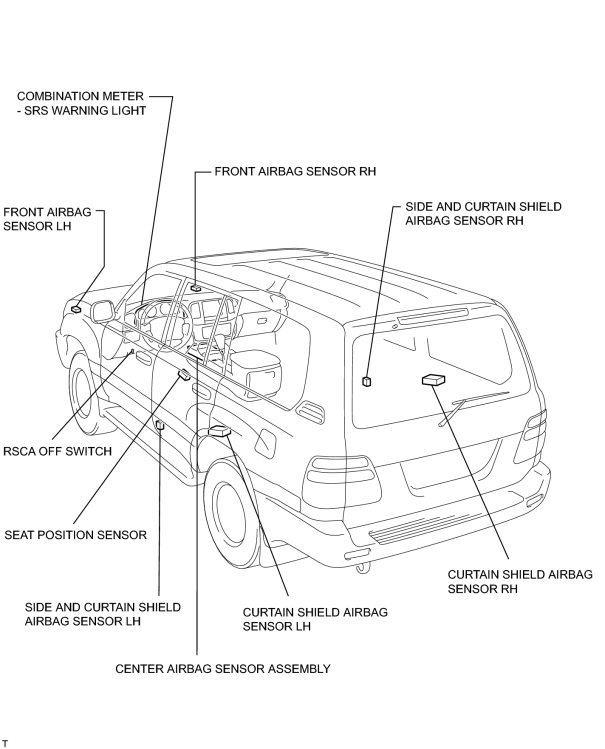

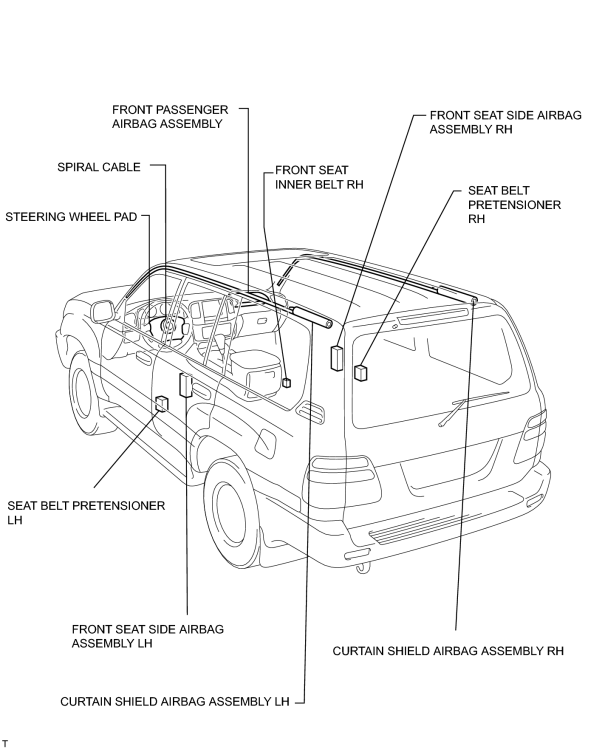

PARTS LOCATION
ILLUSTRATION
ILLUSTRATION
|
|
