| Last Modified: 4-30-2014 | 6.6 U | Doc ID: RM000000XF9006X |
| Model Year: 2006 | Model: LX470 | Prod Date Range: [05/2005 - 01/2006] |
| Title: SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: TERMINALS OF ECU; 2006 MY LX470 [05/2005 - 01/2006] | ||
TERMINALS OF ECU

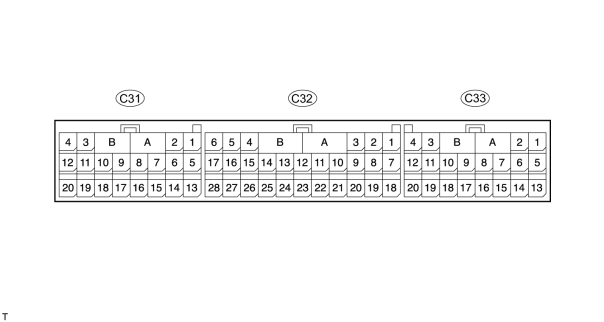

1. CENTER AIRBAG SENSOR ASSEMBLY
|
No. |
Symbol |
Terminal Name |
|---|---|---|
|
A |
- |
Electrical Connector Check Mechanism |
|
B |
- |
Electrical Connector Check Mechanism |
|
C32-3 |
LA |
SRS Warning Light |
|
C32-5 |
IG2 |
Power Source |
|
C32-7 |
P2- |
Squib (Passenger, 2nd step) |
|
C32-8 |
P2+ |
Squib (Passenger, 2nd step) |
|
C38-9 |
+SR |
Front Airbag Sensor RH |
|
C32-10 |
P+ |
Squib (Passenger) |
|
C32-11 |
P- |
Squib (Passenger) |
|
C32-12 |
SIL |
Diagnosis |
|
C32-13 |
D- |
Squib (Driver) |
|
C32-14 |
D+ |
Squib (Driver) |
|
C32-15 |
+SL |
Front Airbag Sensor LH |
|
C32-16 |
D2+ |
Squib (Driver, 2nd step) |
|
C32-17 |
D2- |
Squib (Driver, 2nd step) |
|
C32-19 |
TC |
Diagnosis |
|
C32-20 |
-SR |
Front Airbag Sensor RH |
|
C32-21 |
RMSW |
RSCA Off Switch |
|
C32-22 |
MPX2 |
Instrument Panel Integration ECU |
|
C32-23 |
GSW2 |
Diagnosis |
|
C32-25 |
RMIL |
RSCA Off Switch Indicator |
|
C32-26 |
-SL |
Front Airbag Sensor LH |
|
C32-27 |
E1 |
Ground |
|
C32-28 |
E2 |
Ground |
|
C31-1 |
CSL- |
Curtain Shield Airbag Assembly LH |
|
C31-3 |
LSP- |
Seat Position Sensor Assembly |
|
C31-4 |
LSP+ |
Seat Position Sensor Assembly |
|
C31-7 |
PL- |
Squib (Seat Belt Pretensioner, LH) |
|
C31-8 |
PL+ |
Squib (Seat Belt Pretensioner, LH) |
|
C31-9 |
ICL+ |
Squib (Curtain Shield, LH) |
|
C31-10 |
ICL- |
Squib (Curtain Shield, LH) |
|
C31-11 |
SFL- |
Squib (Side, LH) |
|
C31-12 |
SFL+ |
Squib (Side, LH) |
|
C31-13 |
ESCL |
Curtain Shield Airbag Sensor Assembly LH |
|
C31-14 |
VUCL |
Curtain Shield Airbag Sensor Assembly LH |
|
C31-15 |
CSL+ |
Curtain Shield Airbag Sensor Assembly LH |
|
C31-16 |
VUPL |
Side and Curtain Shield Airbag Sensor Assembly LH |
|
C31-17 |
SSL+ |
Side and Curtain Shield Airbag Sensor Assembly LH |
|
C31-18 |
ESL |
Side and Curtain Shield Airbag Sensor Assembly LH |
|
C31-19 |
LBE+ |
Seat Belt Buckle Switch LH |
|
C31-20 |
SSL- |
Side and Curtain Shield Airbag Sensor Assembly LH |
|
C33-4 |
CSR- |
Curtain Shield Airbag Sensor Assembly RH |
|
C33-5 |
SFR+ |
Squib (Side, RH) |
|
C33-6 |
SFR- |
Squib (Side, RH) |
|
C33-7 |
ICR- |
Squib (Curtain Shield, RH)) |
|
C33-8 |
ICR+ |
Squib (Curtain Shield, RH)) |
|
C33-9 |
PR+ |
Squib (Seat Belt Pretensioner, RH) |
|
C33-10 |
PR- |
Squib (Seat Belt Pretensioner, RH) |
|
C33-13 |
SSR- |
Side and Curtain Shield Airbag Sensor Assembly RH |
|
C33-15 |
ESR |
Side and Curtain Shield Airbag Sensor Assembly RH |
|
C33-16 |
SSR+ |
Side and Curtain Shield Airbag Sensor Assembly RH |
|
C33-17 |
VUPR |
Side and Curtain Shield Airbag Sensor Assembly RH |
|
C33-18 |
CSR+ |
Curtain Shield Airbag Sensor Assembly RH |
|
C33-19 |
VUCR+ |
Curtain Shield Airbag Sensor Assembly RH |
|
C33-20 |
ESCR |
Curtain Shield Airbag Sensor Assembly RH |
|
|
