| Last Modified: 4-30-2014 | 6.6 A | Doc ID: RM0000013BV003X |
| Model Year: 2006 | Model: LX470 | Prod Date Range: [05/2005 - ] |
| Title: A750F AUTOMATIC TRANSMISSION: SPEED SENSOR: INSTALLATION; 2006 MY LX470 [05/2005 - ] | ||
INSTALLATION
1. INSTALL SPEEDOMETER SENSOR
(a) Insert the speedometer driven gear in the speedometer sensor with the clip.
(b) Coat a new O-ring with ATF.
(c) Install the O-ring to the speedometer driven gear assembly.
(d) Install the sensor with the bolt.
Torque:
16 N·m {160 kgf·cm, 12ft·lbf}
|
(e) Connect the sensor connector. |
|

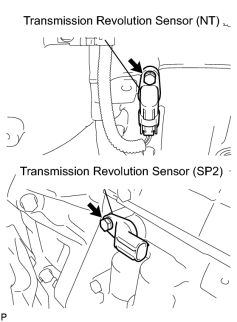

2. INSTALL TRANSMISSION REVOLUTION SENSOR (NT) AND VEHICLE SPEED SENSOR (SP2)
(a) Coat 2 new O-rings with ATF and install them to the revolution sensor (SP2) and (NT).
|
(b) Install the revolution sensor (SP2) and (NT) with the 2 bolts. Torque: 5.4 N·m {55 kgf·cm, 48in·lbf} |
|
(c) Connect the sensor connectors.
|
|
