| Last Modified: 4-30-2014 | 6.6 A | Doc ID: RM0000013CN004X |
| Model Year: 2006 | Model: LX470 | Prod Date Range: [05/2005 - ] |
| Title: A750F AUTOMATIC TRANSMISSION: VALVE BODY ASSEMBLY: DISASSEMBLY; 2006 MY LX470 [05/2005 - ] | ||
DISASSEMBLY
|

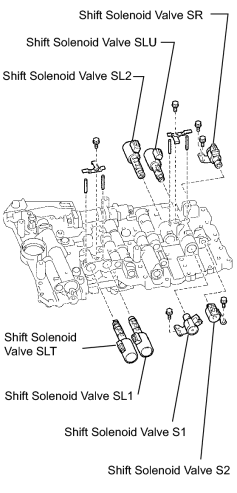

1. REMOVE SHIFT SOLENOID VALVE (a) Remove the bolt, lock plate, 2 pins and shift solenoid valve SLT and SL1. (b) Remove the bolt, lock plate, 2 pins and shift solenoid valves SLU and SL2. (c) Remove the 2 bolts and shift solenoid valve SR. (d) Remove the bolt and shift solenoid valve S1. (e) Remove the bolt and shift solenoid valve S2. |
|
|
|
