| Last Modified: 4-30-2014 | 6.6 G | Doc ID: RM0000017FW002X |
| Model Year: 2006 | Model: LX470 | Prod Date Range: [05/2005 - ] |
| Title: 2UZ-FE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR: INSPECTION; 2006 MY LX470 [05/2005 - ] | ||
INSPECTION
1. INSPECT ENGINE COOLANT TEMPERATURE SENSOR
|

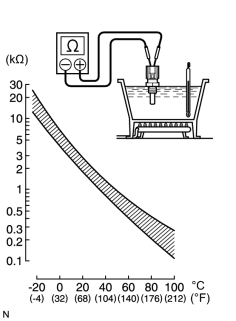

(a) Partially insert the sensor into the water and warm up the water. |
|
(b) Measure the resistance between the terminals.
Standard resistance:
|
Condition |
Specified Condition |
|---|---|
|
Approx. 20°C (68°F) |
2.32 to 2.59 kΩ |
|
Approx. 80°C (176°F) |
0.310 to 0.326 kΩ |
If the result is not as specified, replace the sensor.
NOTICE:
When checking the ECT sensor in the water, keep the terminals dry. After the check, wipe the sensor dry.
|
|
