| Last Modified: 4-30-2014 | 6.6 R | Doc ID: RM0000018C0001X |
| Model Year: 2006 | Model: LX470 | Prod Date Range: [05/2005 - 01/2006] |
| Title: 2UZ-FE EMISSION CONTROL: EMISSION CONTROL SYSTEM: PARTS LOCATION; 2006 MY LX470 [05/2005 - 01/2006] | ||
PARTS LOCATION

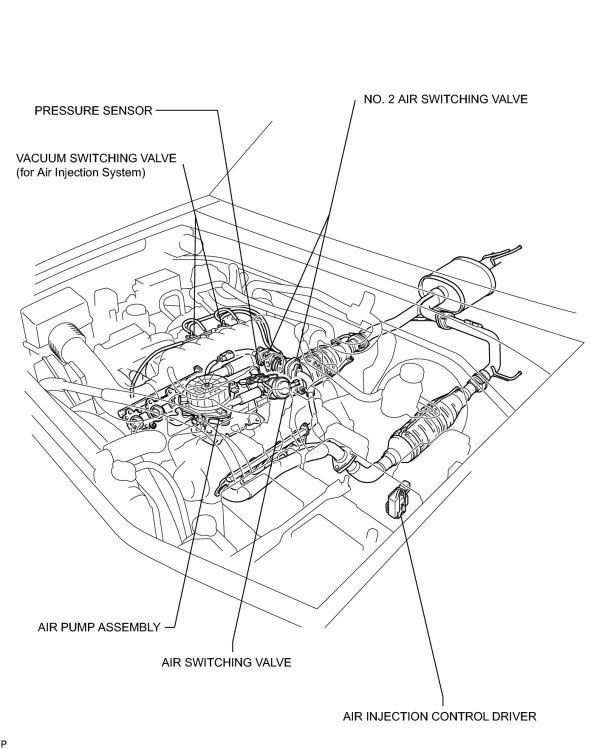

ILLUSTRATION

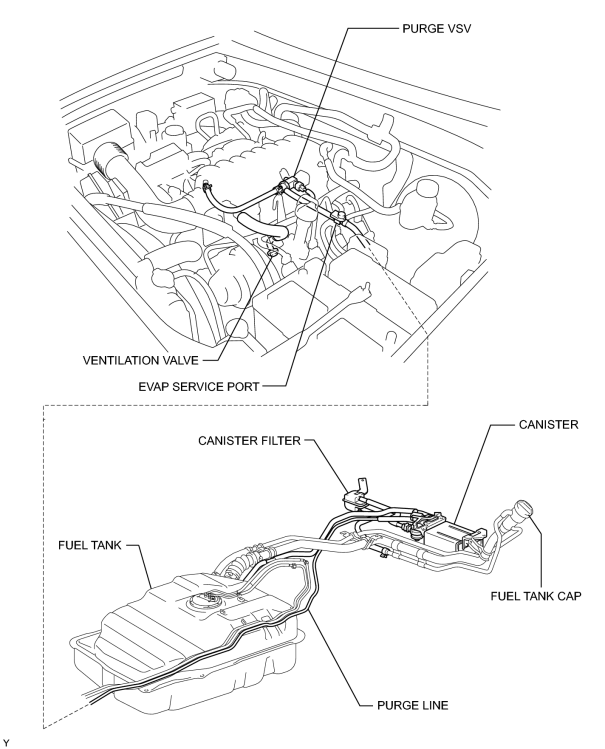

ILLUSTRATION
|
|
