Last Modified:
4-30-2014
6.6 U
Doc ID:
RM0000018C1001X
Model Year:
2006
Model:
LX470
Prod Date Range:
[05/2005 - 01/2006]
Title:
2UZ-FE EMISSION CONTROL: EMISSION CONTROL SYSTEM: SYSTEM DIAGRAM; 2006 MY LX470 [05/2005 - 01/2006]

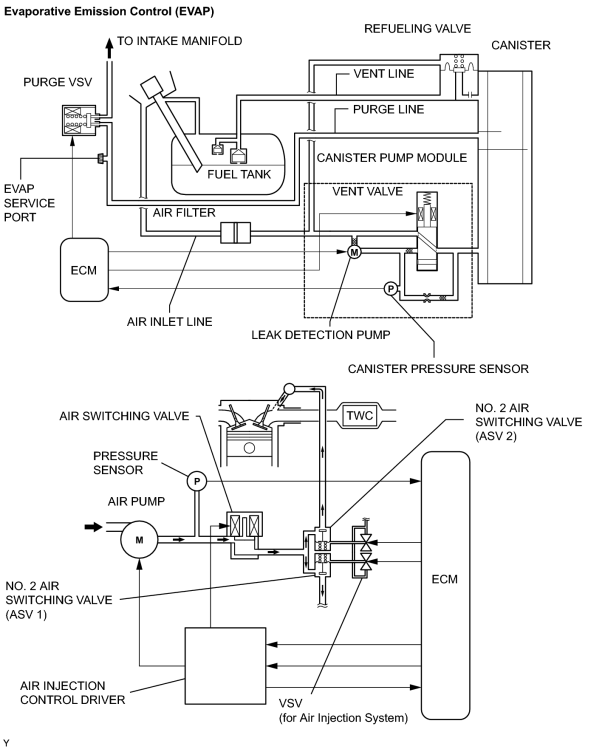

SYSTEM DIAGRAM
