| Last Modified: 4-30-2014 | 6.6 K | Doc ID: RM0000018KD001X |
| Model Year: 2006 | Model: LX470 | Prod Date Range: [05/2005 - ] |
| Title: 2UZ-FE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR: COMPONENTS; 2006 MY LX470 [05/2005 - ] | ||
COMPONENTS

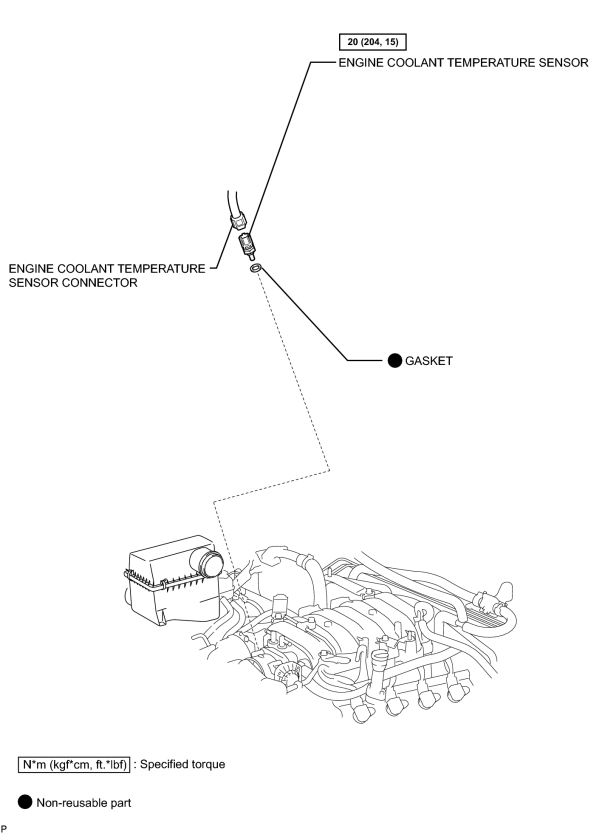

ILLUSTRATION

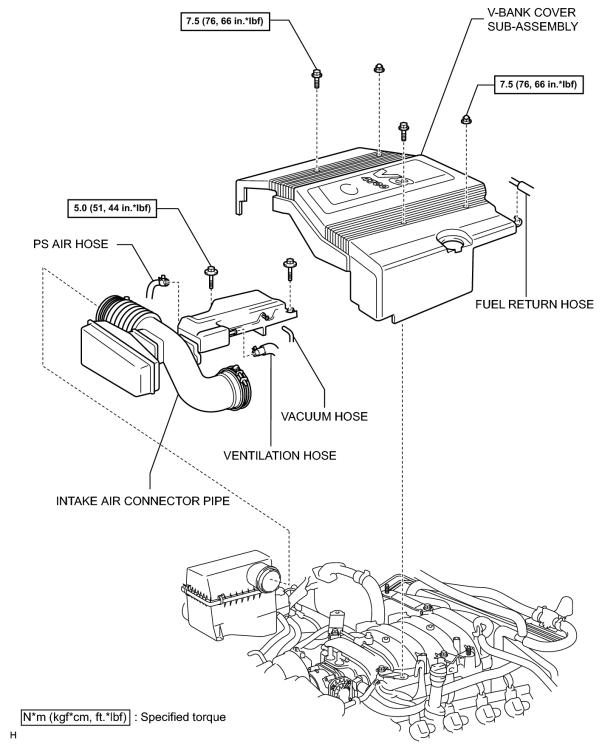

ILLUSTRATION
|
|
