Last Modified: 4-30-2014 6.6 A Doc ID: RM0000018YC002X
Model Year: 2006 Model: LX470 Prod Date Range: [05/2005 -           ]
Title: 2UZ-FE EXHAUST: EXHAUST PIPE: INSTALLATION; 2006 MY LX470 [05/2005 -        ]

INSTALLATION

1. INSTALL FRONT EXHAUST PIPE RH

(a) Install a new gasket to the front exhaust pipe.

(b) Install the front exhaust pipe to the exhaust manifold with 3 new nuts.

Torque:

62 N·m {632 kgf·cm, 46ft·lbf}

2. INSTALL FRONT EXHAUST PIPE LH

(a) Install a new gasket to the front exhaust pipe.

(b) Install the front exhaust pipe to the exhaust manifold with 3 new nuts.

Torque:

62 N·m {632 kgf·cm, 46ft·lbf}

3. INSTALL FRONT NO. 2 EXHAUST PIPE

(a) Install the front No. 2 exhaust pipe to the body bracket with the ring.

(b) Install a new gasket to the front No. 2 exhaust pipe.

(c) Connect the front No. 2 exhaust pipe to the front exhaust pipe LH with the 2 bolts and 2 new nuts.

Torque:

40 N·m {408 kgf·cm, 30 ft·lbf}

4. INSTALL CENTER EXHAUST PIPE

(a) Install the center exhaust pipe to the body bracket with the 3 rings.

(b) Install 2 new gaskets to the center exhaust pipe.

(c) Connect the center exhaust pipe to the front exhaust pipe RH and front No. 2 exhaust pipe with the 4 bolts and 4 new nuts.

Torque:

40 N·m {408 kgf·cm, 30 ft·lbf}

5. INSTALL TAILPIPE

(a) Install the tailpipe with the 2 rings.

(b) Install a new gasket.

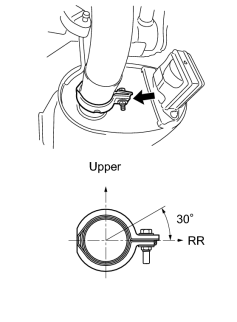

(c) Install a new clamp with the bolt as shown in the illustration.

NOTICE:

Do not reuse the removed gasket and clamp.

Torque:

35 N·m {357 kgf·cm, 26 ft·lbf}

6. INSTALL HEATED OXYGEN SENSOR (for Bank 2 Sensor 2)

(a) Using SST, install the sensor.

SST: 09224-00010

Torque:

44 N·m {449 kgf·cm, 32 ft·lbf} for use without SST

40 N·m {408 kgf·cm, 30 ft·lbf} for use with SST

HINT:

Use a torque wrench with a fulcrum length of 30 cm (11.81 in.).

(b) Connect the sensor connector.

7. INSTALL HEATED OXYGEN SENSOR (for Bank 1 Sensor 2)

(a) Using SST, install the sensor.

SST: 09224-00010

Torque:

44 N·m {449 kgf·cm, 32 ft·lbf} for use without SST

40 N·m {408 kgf·cm, 30 ft·lbf} for use with SST

HINT:

Use a torque wrench with a fulcrum length of 30 cm (11.81 in.).

(b) Connect the sensor connector.

8. CHECK FOR EXHAUST GAS LEAKS

If gas is leaking, tighten the problem areas to stop the leak. Replace damaged parts as necessary.
