Last Modified: 4-30-2014 6.6 A Doc ID: RM000001971001X
Model Year: 2006 Model: LX470 Prod Date Range: [05/2005 -           ]
Title: EXTERIOR: ROOF DRIP SIDE FINISH MOULDING: REMOVAL; 2006 MY LX470 [05/2005 -        ]

REMOVAL

HINT:

  • Use the same procedures for the RH side and LH side.
  • The procedures listed below are for the LH side.

1. REMOVE NO. 2 ROOF DRIP SIDE FINISH MOULDING CENTER LH

(a) Remove the 3 mouldings.

2. REMOVE ROOF DRIP SIDE FINISH MOULDING LH

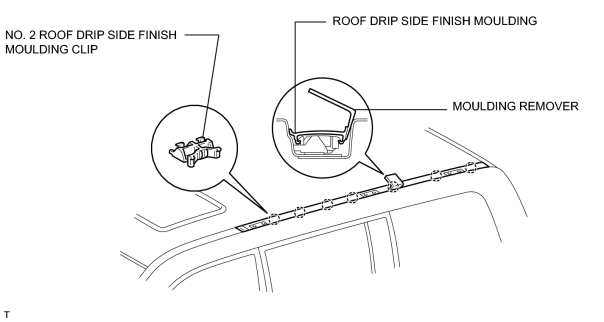

(a) Using a moulding remover, detach the claws and remove the moulding.

NOTICE:

  • Be careful not to damage the vehicle body.
  • Do not remove the No. 2 roof drip side finish moulding clip.
  • If the clip is accidentally removed, replace it with a new one.
