CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: Translate ECU Communication Stop Mode; 2006 MY LX470 [05/2005

Last Modified: 4-30-2014	6.6 J	Doc ID: RM0000019YE001X
Model Year: 2006	Model: LX470	Prod Date Range: [05/2005 - ]
Title: CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: Translate ECU Communication Stop Mode; 2006 MY LX470 [05/2005 - ]

Translate ECU Communication Stop Mode

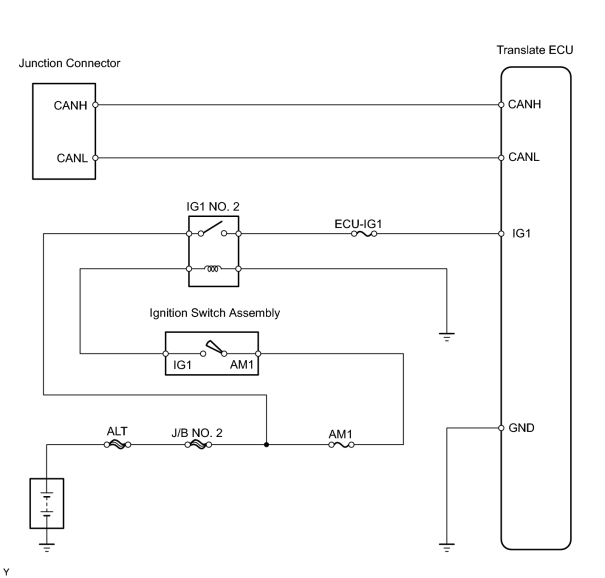

DESCRIPTION

Detection Item	Symptom	Trouble Area
Translate ECU communication stop mode	"TRANSLATE ECU" is not displayed on "BUS CHECK" of intelligent tester Applies to "TRANSLATE ECU COMMUNICATION STOP MODE" in "DTC COMBINATION TABLE"	Power source or inside translate ECU Translate ECU sub bus line or connector

1.	CHECK CAN BUS LINE FOR DISCONNECTION (TRANSLATE ECU SUB BUS LINE)

(a) Disconnect the T39 translate ECU connector.

(b) Measure the resistance of the wire harness side connector.

Standard resistance:

Tester Connection	Condition	Specified Condition
T39-7 (CANH) - T39-10 (CANL)	Ignition switch OFF	54 to 67 Ω

REPAIR OR REPLACE TRANSLATE ECU SUB BUS LINE OR CONNECTOR (CAN-H, CAN-L)

2.	CHECK WIRE HARNESS (TRANSLATE ECU - BATTERY AND BODY GROUND)

(a) Disconnect the T39 translate ECU connector.

(b) Measure the resistance of the wire harness side connector.

Standard resistance:

Tester Connection	Condition	Specified Condition
T39-40 (GND) - Body ground	Always	Below 1 Ω

Standard voltage:

Tester Connection	Condition	Specified Condition
T39-1 (IG1) - Body ground	Ignition switch ON	10 to 14 V

REPAIR OR REPLACE HARNESS AND CONNECTOR

REPLACE TRANSLATE ECU
